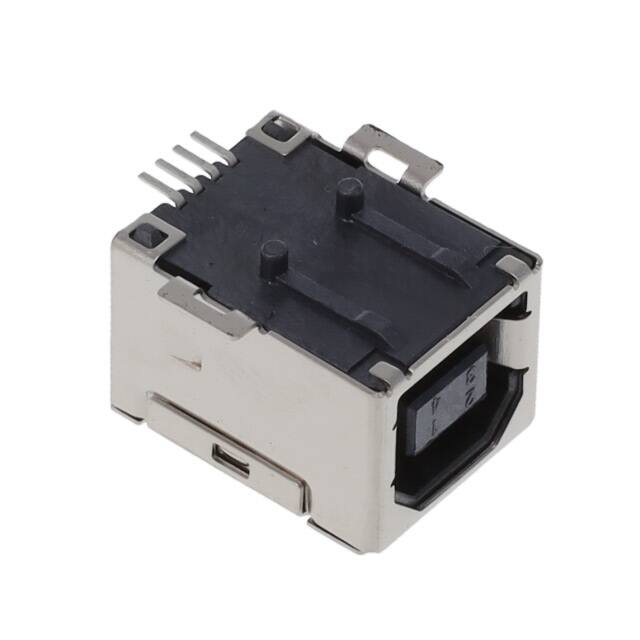

The KUSBX-SMTBS1NBTR is a USB-B receptacle connector from Kycon Inc., part of the KUSBX-SMT series. It features 4 contacts with gold over nickel plating, rated for 1A current and 30V AC/DC voltage. The connector is surface mount with a right angle orientation, making it suitable for compact PCB designs.
Electrical characteristics include a maximum contact resistance of 30 mΩ, minimum insulation resistance of 1000 MΩ, and a dielectric withstanding voltage of 500V AC for 1 minute. The operating temperature range is -40°C to 85°C.
The connector is shielded and includes board guide and solder retention features for reliable assembly. It is packaged in tape and reel for automated placement. The insulator is made of high temperature thermoplastic rated UL94V-0.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.54 | $1.54 |
| 10+ | $1.31 | $1.31 |
| 25+ | $1.17 | $1.17 |
| 100+ | $1.06 | $1.06 |
| 200+ | $1.00 | $1.00 |
| 400+ | $0.98 | $0.98 |
| 2,400+ | $0.94 | $0.94 |
| 5,000+ | $0.90 | $0.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 1 A.
The voltage rating is 30 V AC/DC.
It uses surface mount, right angle mounting.
It has 4 contacts.
The operating temperature range is -40°C to 85°C.
Yes, it is shielded.
The maximum contact resistance is 30 mΩ.
