| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Material | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Gender | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shell Material | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage |

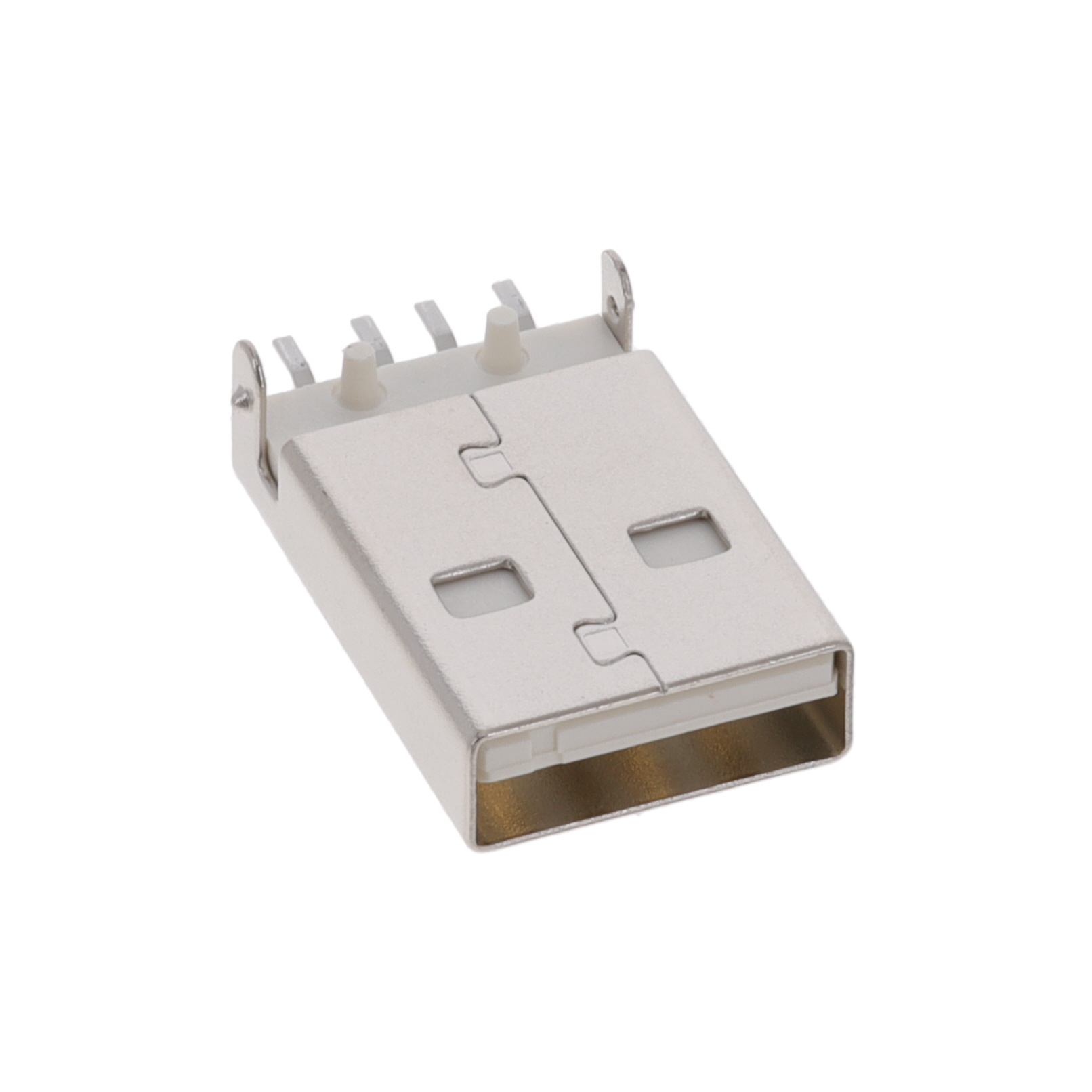

The Kycon KUSBX-SMT2AP1S-W30 is a USB-A (USB TYPE-A) plug connector designed for surface mount applications. It features 4 contacts in a right-angle orientation, with a fully shielded shell for EMI protection. The connector is rated for 1A current and 30VAC voltage, with a maximum contact resistance of 30 mOhm and minimum insulation resistance of 1000 MOhm. It withstands 500VAC dielectric strength. Operating temperature ranges from -55°C to 85°C. The insulator is made of PA6T thermoplastic (UL94V-0 rated), contacts are phosphor bronze with 30µ" gold plating, and the shell is steel with nickel plating. This connector is suitable for use in dongles, adapters, and other USB interface applications. It is RoHS and REACH compliant according to the manufacturer, and has UL file number E134345.
1 A.
30 VAC.
Surface Mount, Right Angle.
-55°C to 85°C.
Yes, it is shielded.
Phosphor Bronze with 30µ" gold plating.
PA6T Thermoplastic, UL94V-0 rated.
