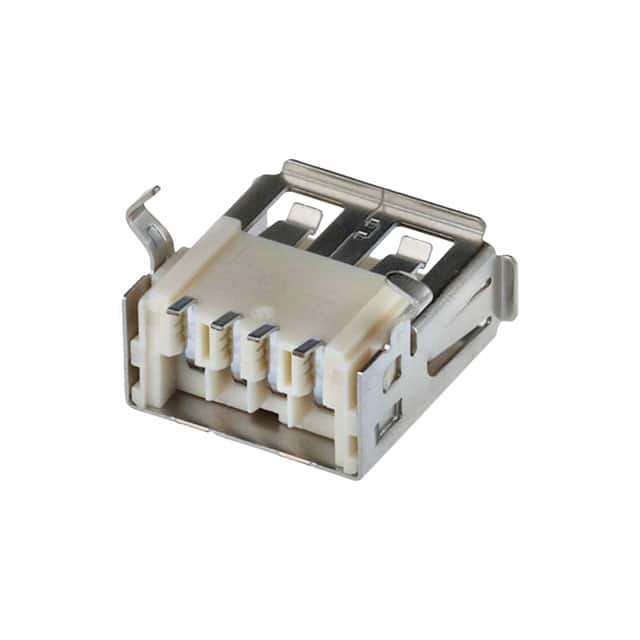

The KUSBX-SMT-AS1N-W is a USB-A (USB TYPE-A) receptacle connector from Kycon Inc., part of the KUSBX-SMT series. It features 4 contacts with a gender of receptacle, designed for surface mount right angle mounting with additional through hole retention for mechanical stability. The connector is shielded for EMI protection and includes a board lock feature for secure attachment to the PCB.
Electrical specifications include a current rating of 1 A and a voltage rating of 30 VAC. Contact resistance is 30 milliohms maximum, insulation resistance is 1000 megohms minimum, and dielectric withstanding voltage is 500 VAC for 1 minute. The operating temperature range is -40°C to 85°C.
The insulator is made of high temperature thermoplastic with UL94V-0 rating, available in white color (W suffix). Contacts are phosphor bronze with gold over nickel plating, and the shell is copper alloy with nickel plating. The connector is RoHS3 compliant and REACH unaffected.
Packaging is bulk, suitable for manual assembly or low-volume production. The part number KUSBX-SMT-AS1N-W indicates the series, type (A), insulator color (white), and plating option (gold flash).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.16 | $1.16 |
| 10+ | $0.99 | $0.99 |
| 25+ | $0.93 | $0.93 |
| 50+ | $0.88 | $0.88 |
| 100+ | $0.84 | $0.84 |
| 300+ | $0.78 | $0.78 |
| 500+ | $0.75 | $0.75 |
| 1,000+ | $0.71 | $0.71 |
| 2,500+ | $0.67 | $0.67 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 contacts.
1 A.
30 VAC.
Surface mount, right angle with through hole retention.
Yes, shielded.
-40°C to 85°C.
Phosphor bronze contacts with gold over nickel plating.
