| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Features | |
| Gender | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shell Material | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| Voltage |

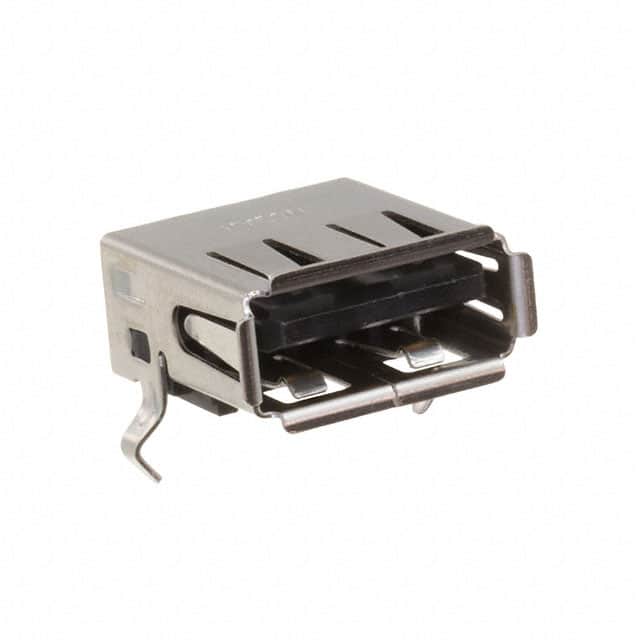

This is a USB-A (Type A) receptacle connector from Kycon's KUSBX-SMT series. It features 4 contacts in a single port, surface mount right angle orientation with through-hole board lock for secure attachment.
Electrical ratings include 1A current and 30VAC voltage, with contact resistance of 30 mOhm max, insulation resistance 1000 MOhm min, and dielectric withstanding voltage 500VAC. Operating temperature range is -40°C to 85°C.
The connector is shielded with a nickel-plated copper alloy shell. Contacts are phosphor bronze with gold over nickel plating. Insulator is high temperature thermoplastic UL94V-0 rated. Packaging is bulk.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.16 | $1.16 |
| 10+ | $0.99 | $0.99 |
| 25+ | $0.93 | $0.93 |
| 50+ | $0.88 | $0.88 |
| 100+ | $0.84 | $0.84 |
| 300+ | $0.78 | $0.78 |
| 500+ | $0.75 | $0.75 |
| 1,000+ | $0.71 | $0.71 |
| 2,500+ | $0.67 | $0.67 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 1 A.
The voltage rating is 30 VAC.
Surface mount, right angle with through-hole board lock.
It has 4 contacts.
Yes, it is shielded.
-40°C to 85°C.
30 milliohms maximum.
