| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,100 pcs
|
1100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Features | |
| Gender | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Rated Current | |
| Shell Material | |
| Shielding | |
| Specifications | |
| Termination | |
| Termination Style | |
| Voltage |

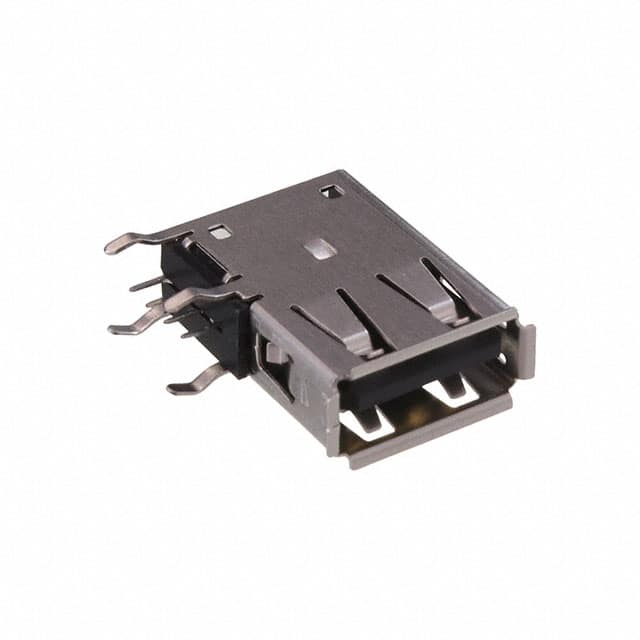

The Kycon KUSBX-SLAS1N-B is a USB 2.0 Type A receptacle connector from the KUSBX-SL series. Designed for upright flag style mounting, it reduces PCB footprint while supporting hot plugging and is compatible with many computer peripherals. The connector is rated for 1.5A maximum current and 30VAC, with a contact resistance of 30 milliohms maximum and insulation resistance of 1000 megohms minimum. Dielectric withstanding voltage is 500VAC.
Mechanically, the connector features a through-hole right angle mounting style with solder termination. It has 4 contacts and is shielded. The mounting feature is vertical, and a board lock is included for secure attachment. The insulator is made of PBT thermoplastic with UL94 V-0 rating, contacts are phosphor bronze with gold over nickel plating, and the shell is copper alloy.
The operating temperature range is -25°C to 80°C. This connector is RoHS and REACH compliant, and carries UL and CSA certifications. It is designed for applications requiring reliable USB Type A connectivity in a space-saving upright flag configuration.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.96 | $0.96 |
| 10+ | $0.82 | $0.82 |
| 25+ | $0.77 | $0.77 |
| 50+ | $0.73 | $0.73 |
| 100+ | $0.70 | $0.70 |
| 300+ | $0.64 | $0.64 |
| 500+ | $0.62 | $0.62 |
| 1,000+ | $0.59 | $0.59 |
| 2,500+ | $0.55 | $0.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Maximum 1.5A per datasheet.
30VAC maximum.
Through hole, right angle with solder termination.
4 contacts.
Yes, features board lock.
-25°C to 80°C.
USB 2.0.
