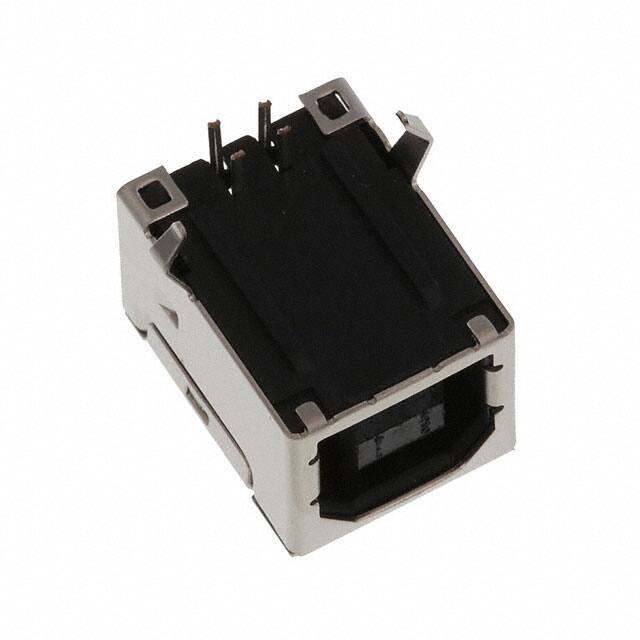

The Kycon KUSBX-BS1N-B is a USB 2.0 Type-B receptacle connector designed for reliable data and power connections in computing and peripheral applications. It features 4 positions in a right-angle orientation, allowing for low-profile board mounting. The connector is terminated via through-hole solder pins and includes a shielding shell with board lock for secure attachment.
Electrical specifications include a rated current of 1.5A, rated voltage of 30V AC, contact resistance of 30 milliohms maximum, insulation resistance of 1000 megohms minimum, and dielectric withstanding voltage of 750V AC. The housing is made of PBT thermoplastic rated UL 94V-0, with phosphor bronze contacts plated with gold on the contact area and tin on solder tails.
Mechanical durability is rated for 1500 mating cycles minimum, with insertion force of 3.57 kg maximum and extraction force of 1.02 kg minimum. The operating temperature range is -40°C to 85°C. The connector is shielded and includes a board lock feature for enhanced retention.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.09 | $1.09 |
| 10+ | $0.93 | $0.93 |
| 25+ | $0.87 | $0.87 |
| 50+ | $0.83 | $0.83 |
| 100+ | $0.79 | $0.79 |
| 300+ | $0.73 | $0.73 |
| 500+ | $0.70 | $0.70 |
| 1,000+ | $0.67 | $0.67 |
| 2,500+ | $0.63 | $0.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
1.5 A.
30 V AC.
Through Hole, Right Angle.
USB 2.0.
-40°C to 85°C.
Yes, shielded.
