| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Features | |
| Gender | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Style | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shell Material | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage |

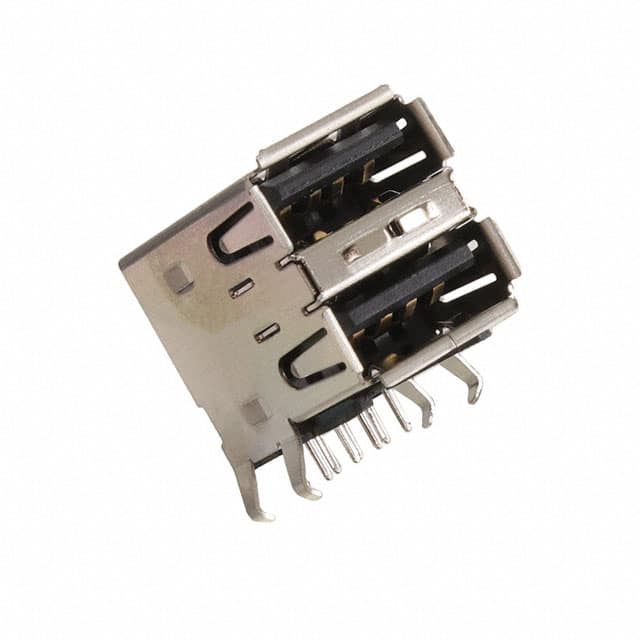

The KUSBX-AS2N-B is a stacked USB Type-A receptacle connector from Kycon Inc., part of the KUSBX series. It features a through hole right angle mounting orientation with solder termination, making it suitable for PCB applications where space is limited.
This connector offers 2 ports with 8 total contacts, rated for 1A current and 30VAC. It is shielded and includes a board lock for secure attachment. The operating temperature range is -40°C to 85°C, and it supports 1500 mating cycles.
The contacts are made of phosphor bronze with gold plating on the contact area and tin on solder tails, all over nickel. The shell is brass with nickel plating, and the insulator is PBT thermoplastic rated UL 94V-0.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.21 | $1.21 |
| 10+ | $1.03 | $1.03 |
| 25+ | $0.97 | $0.97 |
| 80+ | $0.89 | $0.89 |
| 160+ | $0.85 | $0.85 |
| 320+ | $0.81 | $0.81 |
| 560+ | $0.78 | $0.78 |
| 1,040+ | $0.74 | $0.74 |
| 2,560+ | $0.70 | $0.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 1A.
The voltage rating is 30VAC.
Through hole, right angle mounting.
It has 2 ports and 8 contacts.
-40°C to 85°C.
Yes, it is shielded.
1500 mating cycles minimum.
