| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,500 pcs
|
5500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Features | |
| Gender | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Style | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shell Material | |
| Shielding | |
| Termination | |
| Voltage |

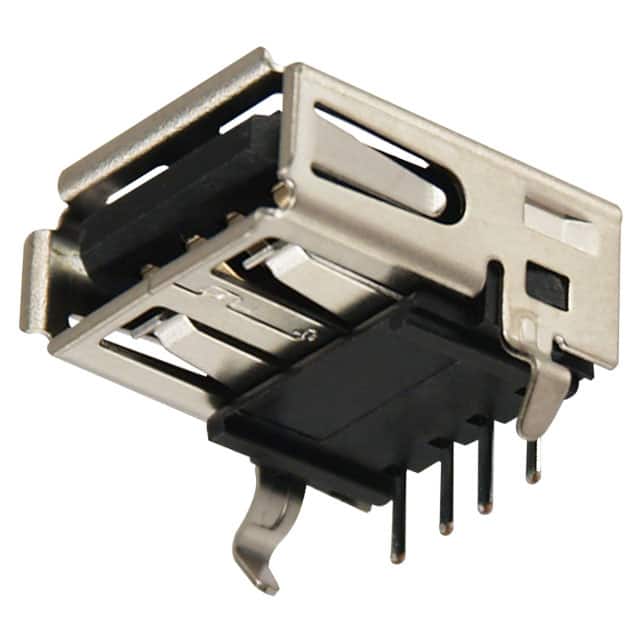

The Kycon KUSBX-AS1N-B is a USB-A (Type A) receptacle connector from the KUSBX series. It features a right angle, through hole PCB mount with a horizontal orientation, making it suitable for edge-mounted or space-constrained designs. The connector is shielded and includes a board lock for secure attachment.
Electrical ratings include 1.5A current and 30VAC voltage. Contact resistance is 30 mΩ maximum, insulation resistance is 1000 MΩ minimum, and dielectric withstanding voltage is 750VAC. The connector is rated for 1500 mating cycles minimum.
The insulator is black PBT thermoplastic with UL 94V-0 flammability rating. Contacts are phosphor bronze with gold plating on the contact area and tin on solder tails, over nickel. The shell is brass with nickel plating. Operating temperature range is -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.71 | $0.71 |
| 10+ | $0.60 | $0.60 |
| 25+ | $0.56 | $0.56 |
| 50+ | $0.54 | $0.54 |
| 100+ | $0.51 | $0.51 |
| 300+ | $0.47 | $0.47 |
| 500+ | $0.46 | $0.46 |
| 1,000+ | $0.44 | $0.44 |
| 2,500+ | $0.41 | $0.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1.5 A
30 VAC
Through hole, right angle with horizontal orientation.
Yes, it is shielded.
-40°C to 85°C
1500 cycles minimum.
Phosphor bronze contacts with gold on contact area, tin on solder tails, all over nickel.
