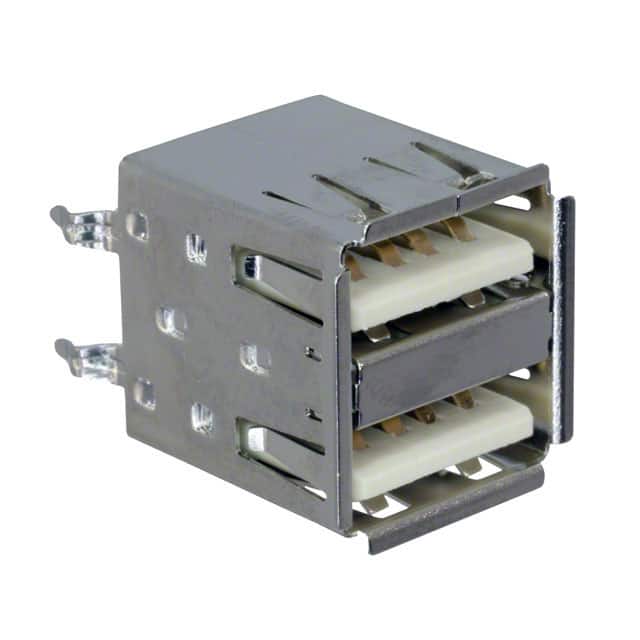

The KUSBVX-AS2N-W-1 is a vertical top entry USB-A stacked receptacle from Kycon's KUSBVX series. It supports USB 2.0 with two ports, each providing four contacts for a total of eight contacts. The connector is through hole mounted with a vertical orientation and features a shielded shell with board lock for secure PCB attachment.
Electrical specifications include a maximum current rating of 1A, maximum voltage rating of 30VAC, contact resistance of 30 milliohms maximum, insulation resistance of 1000 megohms minimum, and dielectric withstanding voltage of 750VAC. Mechanical characteristics specify an insertion force of 3.57kg maximum and extraction force of 1.02kg minimum, with a durability of 1500 mating cycles minimum.
The insulator is made of PBT thermoplastic rated UL 94V-0, contacts are phosphor bronze with gold flash on the contact area and tin on the solder tail, all over nickel plating. The shell is brass with nickel plating. The connector operates over a temperature range of -55°C to 85°C. Environmental compliance includes RoHS3 and REACH unaffected status, though unverified. The datasheet notes a certificate of RoHS and REACH compliance, as well as a UL plastic file, but no document URLs are provided.
1A maximum.
30VAC maximum.
Through hole, vertical orientation.
USB 2.0.
2 ports, 8 contacts total (4 per port).
-55°C to 85°C.
Yes, shielded.
