| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Insulation | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Mounting Type | |
| Must Operate Voltage | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Switching Voltage | |
| Termination Style |

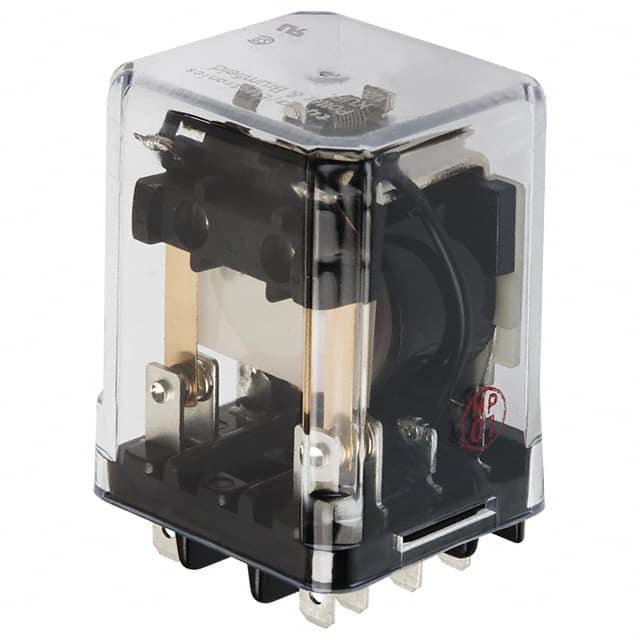

This TE Connectivity KUP-14D15-12 is a general purpose relay designed for power applications. It features a 3PDT (3 Form C) contact configuration, capable of switching up to 10A. The relay requires a 12VDC coil voltage and has a must-operate voltage of 9VDC.
Operating within a temperature range of -45°C to 70°C, this relay offers an operate time of 15 ms and a release time of 10 ms. The contact material is Silver Cadmium Oxide (AgCdO), suitable for various switching applications. The relay is designed for socketable mounting and features plug-in termination with 0.187" (4.7mm) quick connect terminals.
This component is classified as RoHS3 Compliant, has an MSL rating of 1, and is REACH Unaffected. It is suitable for applications requiring a reliable general-purpose power relay with specific contact and coil specifications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 12VDC.
The contact rating is 10A.
The contact form is 3PDT (3 Form C).
The operating temperature range is -45°C to 70°C.
It is socketable.
