| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Insulation | |
| Coil Resistance | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Mounting Type | |
| Must Operate Voltage | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Switching Voltage | |
| Tape & Reel | |
| Termination Style |

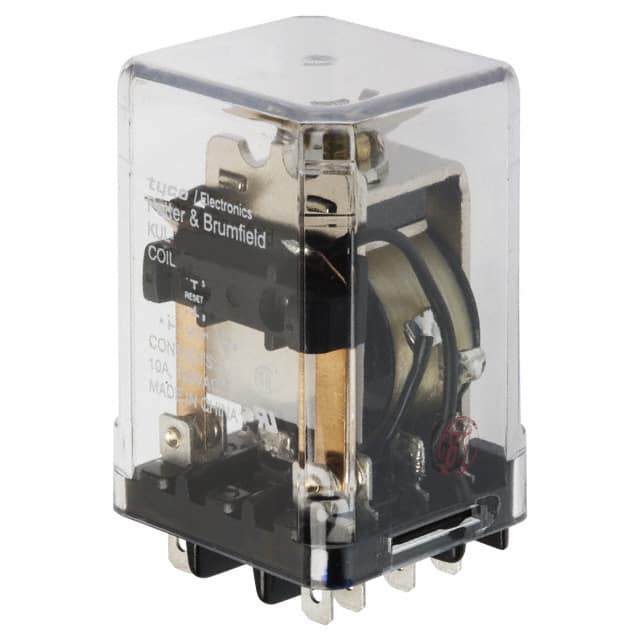

This TE Connectivity KUL-11D15D-24 relay is a general purpose type with a DPDT (2 Form C) contact configuration. It offers a robust 10A contact rating and is designed to operate with a 24VDC coil voltage.
The relay has an operate time of 25 ms and a release time of 25 ms, with a must-operate voltage of 18 VDC. The contact material is Silver Cadmium Oxide (AgCdO), suitable for various switching applications. The operating temperature range is -45°C to 50°C.
Designed for ease of integration, this relay features a socketable mounting type and a plug-in termination style with 0.187" (4.7mm) quick connect terminals. The coil resistance is 350 Ohms, and it utilizes a latching, dual coil type. The switching voltage is rated up to 240VAC maximum. Coil insulation is Class B.
Packaging is provided in bulk. Please note that this component is RoHS non-compliant and REACH Affected.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 10 A.
The coil voltage is 24VDC.
The operating temperature range is -45°C to 50°C.
It has a DPDT (2 Form C) contact form.
It is socketable.
The termination style is Plug In, Quick Connect - 0.187" (4.7mm).
