| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45 pcs
|
45 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature Range | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Termination Style | |
| Voltage |
The KTS1670EDA-TR is an over-voltage protection (OVP) switch designed to protect low-voltage systems from voltage supply faults up to +30V. It integrates an N-Channel MOSFET with ultra-low on-resistance of 60mΩ (typical) and supports continuous current up to 3A.
The device offers adjustable over-voltage threshold via an external resistor divider, ranging from 4V to 22V, or a fixed default threshold of 6.05V (typical). It features a fast OVP turn-off response time of 100ns, an 18ms debounce time, and built-in UVLO, short-circuit, and thermal shutdown protection. The KTS1670 is compliant with IEC61000-4-2 ESD protection at ±8kV contact and ±15kV air gap, and HBM ESD at ±2.5kV.

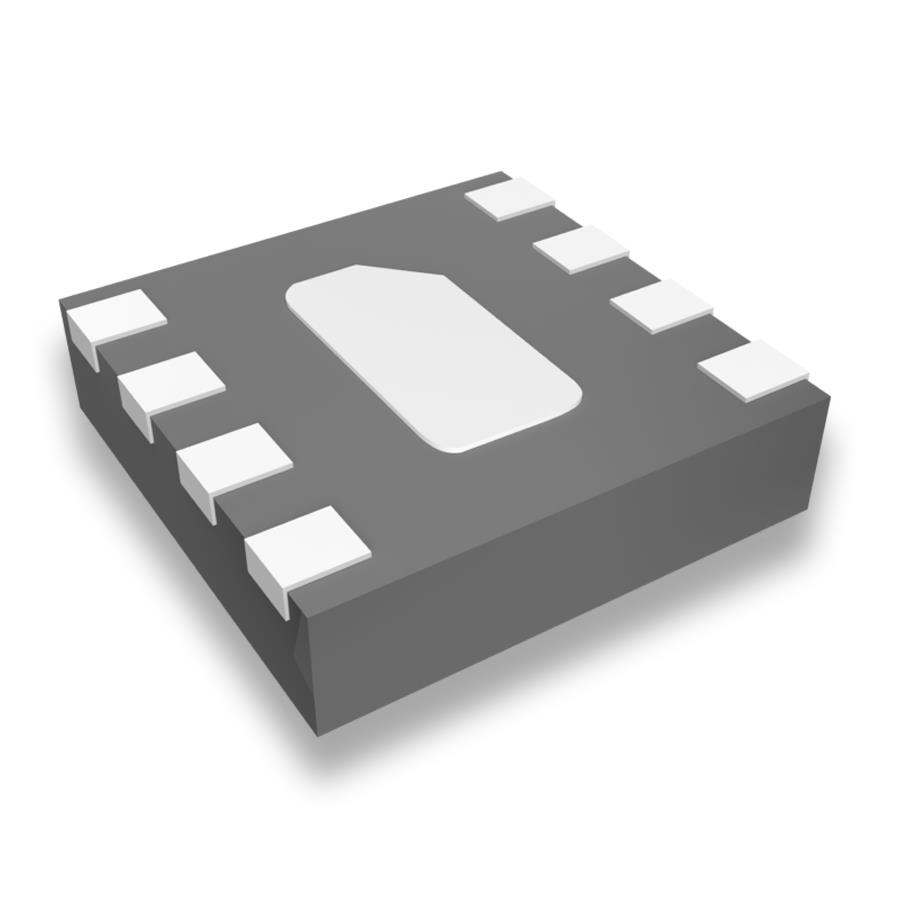

The KTS1670EDA-TR is available in an 8-UFDFN exposed pad surface mount package (8-UDFN 2x2mm). It is RoHS and Pb-free compliant. Typical applications include smartphones, mobile internet devices, tablet computers, peripherals, and set-top boxes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.68 | $0.68 |
| 10+ | $0.48 | $0.48 |
| 25+ | $0.43 | $0.43 |
| 100+ | $0.38 | $0.38 |
| 250+ | $0.35 | $0.35 |
| 500+ | $0.34 | $0.34 |
| 1,000+ | $0.32 | $0.32 |
| 3,000+ | $0.31 | $0.31 |
| 6,000+ | $0.30 | $0.30 |
| 9,000+ | $0.30 | $0.30 |
| 15,000+ | $0.29 | $0.29 |
| 21,000+ | $0.29 | $0.29 |
| 30,000+ | $0.29 | $0.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 2.7V to 30V.
It is available in an 8-UFDFN exposed pad package (8-UDFN 2x2mm).
-40°C to +85°C.
Yes, it is RoHS3 compliant and Pb-free.
The default fixed threshold is 6.05V typical, adjustable from 4V to 22V via external resistor divider.
3A continuous.
HBM ±2.5kV, IEC61000-4-2 contact ±8kV, air gap ±15kV.
