| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Dielectric Withstanding Voltage | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Ripple | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

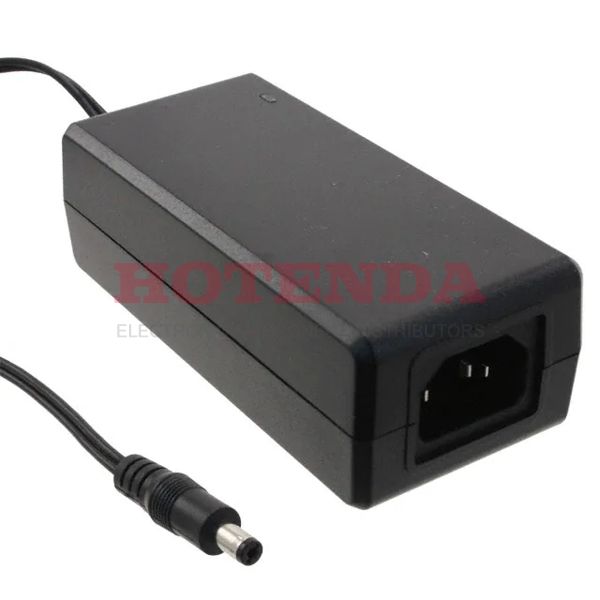

This KTPS65-1934DT-3P AC DC desktop adapter from Kaga Electronics USA provides a reliable 65W power output with a 19V nominal voltage. Designed for versatility, it accepts a universal input voltage range of 100 to 240 VAC at 50-60 Hz, making it suitable for international applications.
The adapter features an IEC320-C14 input connector and a positive center barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm). It is designed for desktop use and complies with ITE (Commercial) application standards.
Key electrical specifications include a maximum input current of 1.4A, a maximum output current of 3.4A, and an efficiency rating of CEC Level V. Protection features include internal primary current fuse, short circuit protection, over current protection, and over voltage protection. The adapter operates within a temperature range of 0°C to +40°C.
With a calculated MTBF of 50,000 hours at 25°C and compliance with standards like EN55022 Class B, EN61000-3-2,3, and EN61000-4-2,3,4,5,6,8,11, this adapter is built for dependable performance in commercial environments.
The KTPS65-1934DT-3P adapter has a nominal output voltage of 19V and a maximum output current of 3.4A.
The KTPS65-1934DT-3P adapter has a maximum power output of 65W.
This adapter accepts a universal input voltage range of 100 to 240 VAC.
The KTPS65-1934DT-3P uses an IEC 320-C14 input connector.
The operating temperature range for this adapter is 0°C to +40°C.
The KTPS65-1934DT-3P meets the CEC Level V efficiency standard.
