| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Dielectric Withstanding Voltage | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Ripple | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

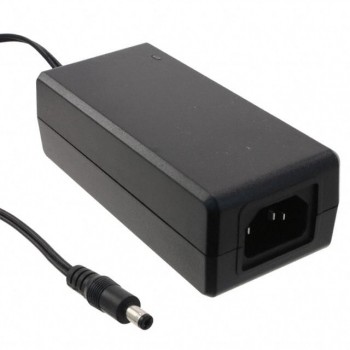

This Kaga Electronics USA KTPS65 Series adapter is a 65W AC/DC desktop power supply designed for universal input voltage ranging from 100 to 240VAC and a frequency of 50-60Hz. It provides a stable 15V output at 4.3A.
The adapter meets CEC Level V efficiency requirements and includes protections for short circuit, over current, and over voltage. Its mechanical specifications include dimensions of 115mm x 53mm x 38mm, with an IEC 320-C14 input connector and a standard 5.5mm x 2.1mm barrel plug output connector.
Key features include a calculated MTBF of 50,000 hours at 25°C and compliance with EMI standards EN55022 Class B. It is suitable for ITE (Commercial) applications and operates within a temperature range of 0°C to 40°C.
The adapter provides 15 V DC at 4.3 A, for 65 W output power.
It accepts 100-240 VAC at 50-60 Hz, with 1.4 A maximum input current.
The operating temperature range is 0°C to 40°C.
It is a desktop Class I adapter with an IEC 320-C14 input connector.
The output is a barrel plug with 2.1 mm inner diameter, 5.5 mm outer diameter, and 9.5 mm length, positive center polarity.
It meets Level V efficiency.
Safety approvals include UL/cUL, CE, CB, GS, PSE, and FCC.
