| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Dielectric Withstanding Voltage | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Ripple | |
| SVHC Present | |
| Storage Temperature | |
| Voltage | |
| Width |

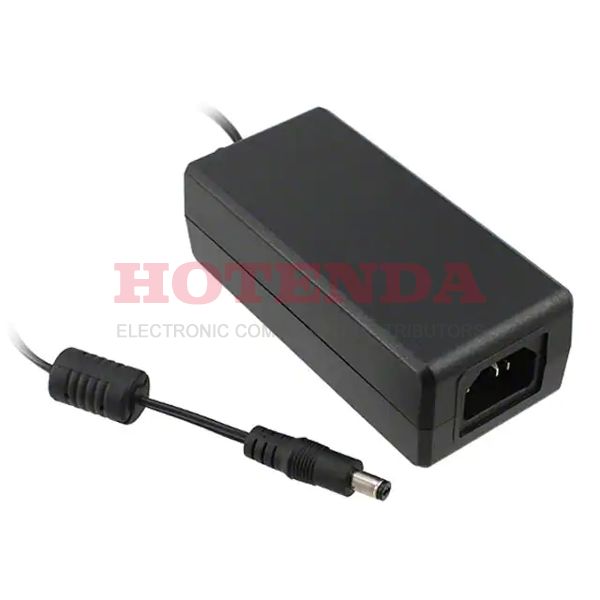

The Kaga Electronics USA KTPS45-0950DT-3P is a versatile AC/DC desktop adapter designed for ITE (Commercial) applications. It delivers a stable 9V output at up to 5A, providing a maximum power of 45W. The adapter supports universal input voltage ranging from 100 to 240VAC and operates at a frequency of 50-60Hz, making it suitable for international use.
Key features include CEC Level V efficiency, ensuring energy savings. It is equipped with essential protections such as Over Voltage Protection (OVP), Over Current Protection (OCP), and Short Circuit Protection (SCP). The adapter has a calculated MTBF of 300,000 hours at 25°C.
Mechanically, the unit measures 115.0mm x 53.0mm x 38.0mm and features an IEC 320-C14 input connector. The output is delivered via a standard barrel plug with a 2.1mm inner diameter and 5.5mm outer diameter, with positive center polarization. The included DC cord is 59 inches (1.50m) long. The operating temperature range is from 0°C to 40°C.
The KTPS45-0950DT-3P provides a 9V output at 5A, delivering up to 45W of power.
This adapter accepts a universal input voltage range of 100-240VAC.
The adapter meets the CEC Level V efficiency standard.
The operating temperature range is 0°C to 40°C.
It features an IEC 320-C14 input connector.
The adapter measures 115.0mm in length, 53.0mm in width, and 38.0mm in height.
