| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

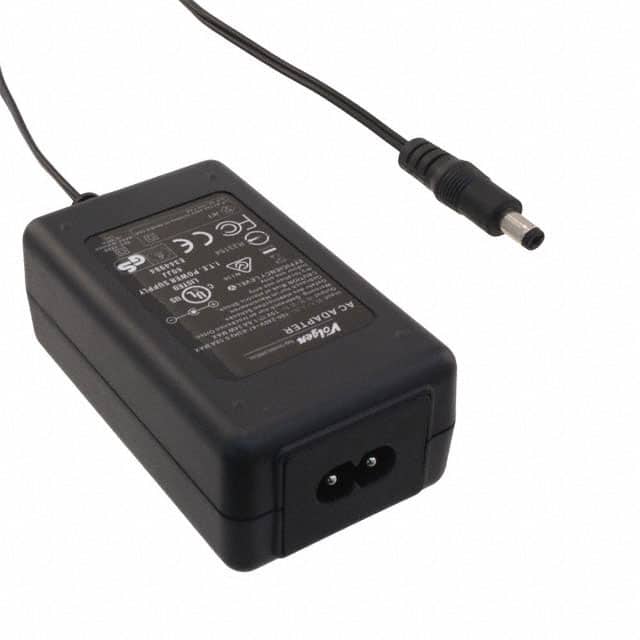

This Kaga Electronics USA KTPS24-05040DT-2P-VI-P1 is an AC/DC desktop adapter designed for ITE (Commercial) applications. It delivers a stable 5V output at 4A, providing a total power of 24W. The adapter meets the stringent Level VI efficiency requirements, ensuring optimal energy usage.
Featuring an IEC 320-C8 input connector and a 2.1mm I.D. x 5.5mm O.D. x 9.5mm barrel plug output with positive center polarization, this unit is suitable for various electronic devices. The operating temperature range is from 0°C to 40°C. Its compact dimensions are 88.0mm x 50.0mm x 34.0mm.
The adapter is classified as Desktop (Class II) and operates internationally. The input is a cord type, sold separately, with a length of 59 inches (1.50m). It is RoHS3 compliant and has an MSL rating of 1 Unlimited.
This adapter provides a 5VDC output at 4A.
The power rating is 24W.
This adapter meets Level VI efficiency standards.
The operating temperature range is 0°C to 40°C.
It features an IEC 320-C8 input connector.
The dimensions are 88.0mm x 50.0mm x 34.0mm.
Yes, it is RoHS3 Compliant.
