| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

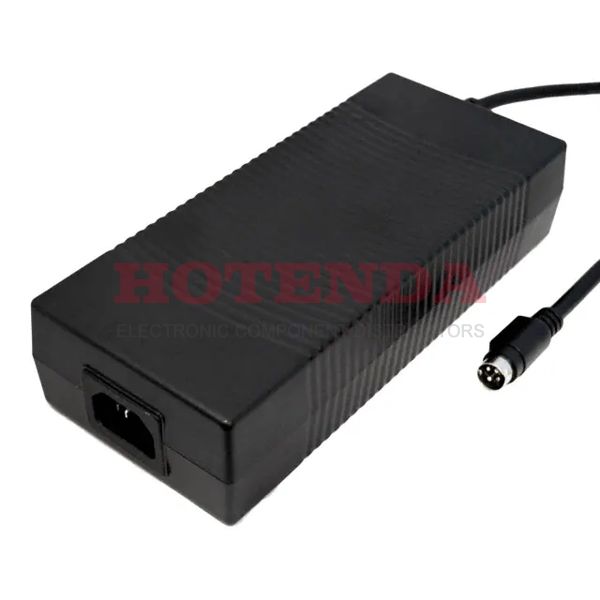

This AC/DC desktop adapter from Kaga Electronics USA, part number KTPS200-24083-VI, delivers 200 watts of power with a 24V output at 8.3A. Designed for ITE (Commercial) applications, it features an IEC 60950-1 standard compliance and achieves Level VI efficiency.
The adapter utilizes an IEC 320-C14 input connector and a Power DIN 4-pin output connector. Its compact dimensions are 183.0mm in length, 81.0mm in width, and 42.3mm in height. The operating temperature range is from 0°C to 40°C. It is designed for international use and operates as a Class I desktop unit.
The KTPS200-24083-VI is RoHS3 compliant and has an MSL 1 rating. It requires a separate power cord, with a compatible cord length of up to 1.20m (47.2").
The KTPS200-24083-VI provides a 24V output at 8.3A.
This adapter has a power rating of 200 Watts.
The adapter meets the Level VI efficiency standard.
It uses an IEC 320-C14 input connector.
The dimensions are 183.0mm in length, 81.0mm in width, and 42.3mm in height.
The operating temperature range is 0°C to 40°C.
