| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Dielectric Withstanding Voltage | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Ripple | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

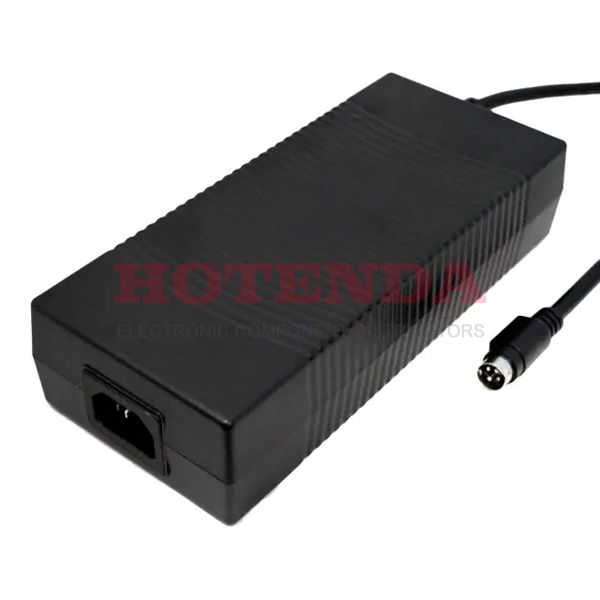

The Kaga Electronics USA KTPS200 Series is a 200 Watt universal input desktop adapter designed for ITE (Commercial) applications. This specific model, KTPS200-24083/S, provides a 24V output at 8.3A, delivering a maximum power of 199W.
Key electrical specifications include a wide input voltage range of 100-240VAC and an input frequency of 50-60Hz. The adapter offers protections such as short circuit, over current, over voltage, and over temperature. It meets CEC Level V efficiency standards and includes features like internal primary current fuse and inrush limiting.
Mechanically, the adapter has dimensions of 203.0mm x 81.0mm x 42.3mm and utilizes an IEC 320-C14 input connector. The output is delivered via a 4-pin mini DIN connector. The operating temperature range is 0°C to +40°C.
Compliance includes UL/cUL/CE/CB/GS/PSE/FCC approvals, EN55022 Class B for EMI, and EN61000-3-2,3 for harmonic current. It is also RoHS3 compliant and has an MSL of 1.
The output voltage is 24V.
The maximum output current is 8.3A.
The maximum power output is 199W.
The adapter accepts a universal input voltage range of 100-240VAC.
It uses an IEC 320-C14 input connector.
The operating temperature range is 0°C to +40°C.
Yes, it is RoHS3 Compliant.
