| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Output Voltage | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

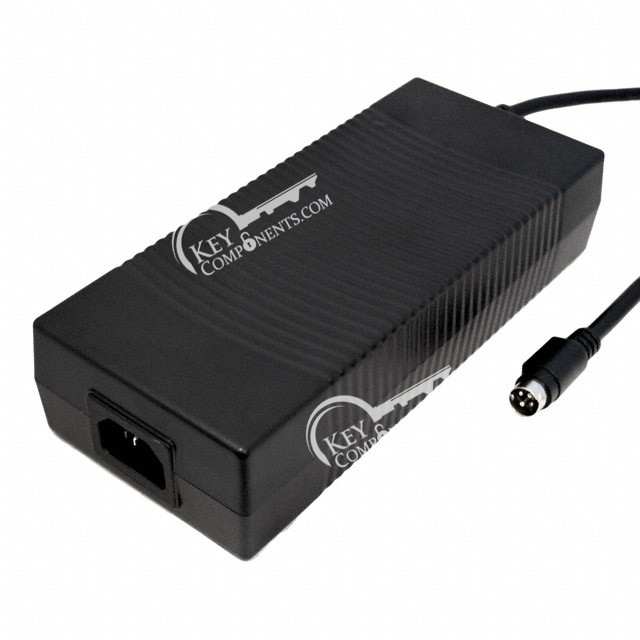

This Kaga Electronics USA KTPS200-18110 is an AC/DC desktop adapter with a power output of 198W. It delivers a stable 18V output at a maximum current of 11A, suitable for various commercial ITE applications.
The adapter operates within a wide input voltage range of 100 to 240 VAC, making it suitable for international use. It features Level V efficiency, ensuring optimal power consumption. The device is designed in a Desktop (Class I) form factor and includes a Power DIN, 4 Pin output connector.
With dimensions of 183.0mm x 81.0mm x 42.3mm, the KTPS200-18110 has a cord length of 1.20m. It operates reliably within a temperature range of 0°C to 40°C. The adapter complies with standard number 60950-1 and carries IEC approval agency certification.
100-240 VAC.
18V at 11A.
198W.
Level V.
0°C to 40°C.
IEC 60950-1.
Desktop (Class I).
