| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Duration | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Weight | |
| Width |

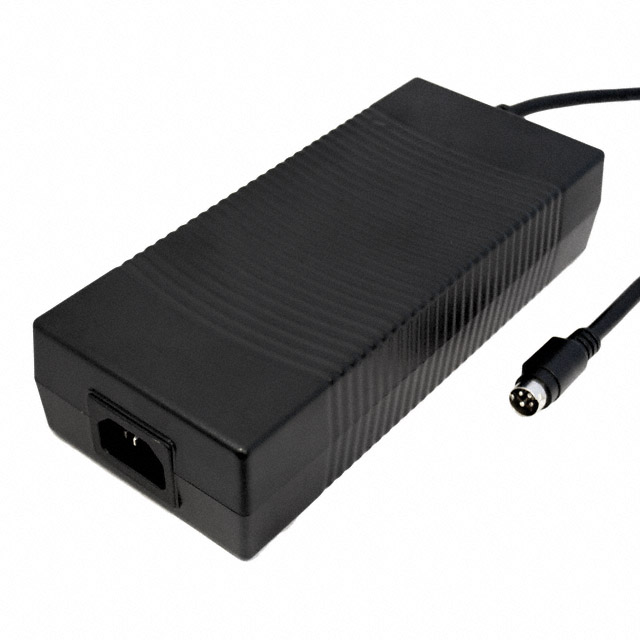

This Kaga Electronics USA KTPS200-13514-VI is an AC/DC desktop adapter designed for ITE (Commercial) applications. It provides a stable 13.5V output voltage with a maximum current of 14A, delivering up to 189W of power.
The adapter operates with an input voltage range of 100 to 240 VAC and features an IEC 320-C14 input connector. It is designed for efficiency, meeting the Level VI standard. The operating temperature range is from 0°C to 40°C.
Key mechanical specifications include dimensions of 183.0mm x 81.0mm x 42.3mm and a weight of 861.8g. The output connector is a 4-pin Power DIN, and the cord length is 1.20m (47.2"). The unit is a Class I desktop form factor, with the input cord sold separately.
Compliance includes CB, CE, cUL, GS, PSE, and UL approvals. It is RoHS3 Compliant, REACH Unaffected, and has an MSL of Level 1.
The output voltage is 13.5V.
The maximum output current is 14A.
The power rating is 189W.
The efficiency level is Level VI.
The operating temperature range is 0°C to 40°C.
It uses an IEC 320-C14 input connector.
The output connector is a 4-pin Power DIN.
