| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Dielectric Withstanding Voltage | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Ripple | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

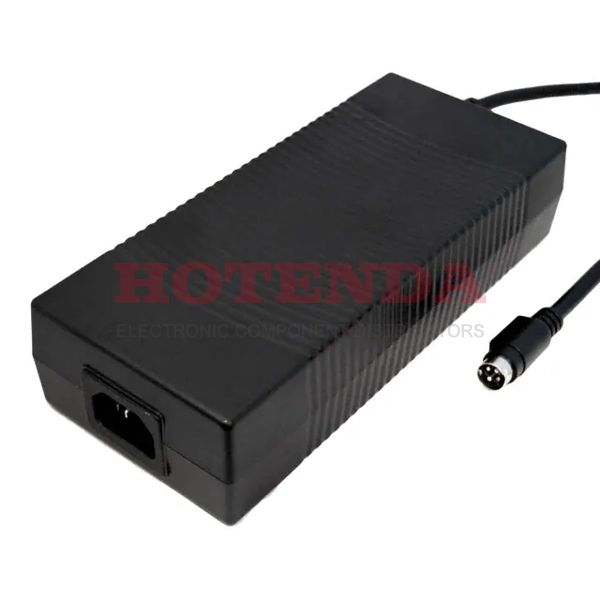

The Kaga Electronics USA KTPS200-12160 is a versatile AC/DC desktop adapter designed for commercial ITE applications. It provides a stable 12V output at a maximum current of 16A, delivering up to 192W of power.
This adapter supports universal input voltage ranging from 100 to 240VAC and operates at a frequency of 50-60Hz. Key electrical specifications include a maximum input current of 2.8A, a hold-up time of 10mS, and load regulation of ±5% typical. Protection features include over-voltage, over-current, and over-temperature protection.
Mechanically, the unit measures 183mm x 81mm x 42.3mm and features an IEC320-C14 input connector. The output is delivered via a 4-pin Power DIN connector. The operating temperature range is from 0°C to +40°C, with humidity levels between 20-80% Rh.
Compliance includes EMI standards like EN55022 Class B and harmonic current compliance with EN61000-3-2,3. It also meets EMS immunity standards EN61000-4-2 through -11. Safety approvals include IEC.
The KTPS200-12160 provides a 12V output voltage at a maximum current of 16A.
The maximum power output for the KTPS200-12160 is 192W.
The adapter accepts a universal input voltage range of 100 to 240VAC.
The adapter uses an IEC 320-C14 input connector.
The operating temperature range is from 0°C to +40°C.
