Mfr Part #:

KTPS18-05930DT-2P-VI-P1

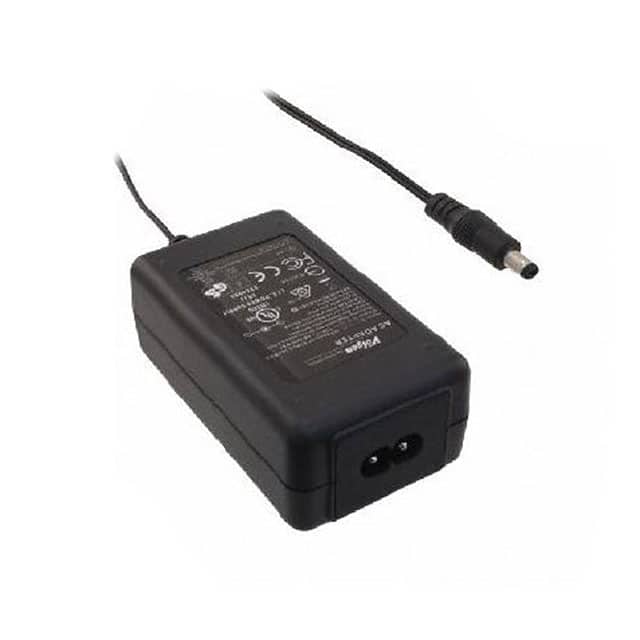

The Kaga Electronics USA KTPS18-05930DT-2P-VI-P1 is an 18W AC/DC desktop adapter with a 5.9V output. It meets Level VI efficiency standards.

Stock on Request

KTPS18-05930DT-2P-VI-P1 Description

Short technical summary and product information.

This AC/DC desktop adapter from Kaga Electronics USA, part number KTPS18-05930DT-2P-VI-P1, provides 18 watts of power with a 5.9V output voltage and 3A current. It is designed for ITE (Commercial) applications and features Level VI efficiency.

The adapter has an IEC 320-C8 input connector and a positive center barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm). Its dimensions are 100.0mm x 50.0mm x 33.0mm. The operating temperature range is 0°C to 40°C.

Compliance is indicated by approval agencies including CB, CE, cUL, GS, PSE, RCM, and UL. The device is classified as Desktop (Class II) form factor and is suitable for international use. The input requires a cord, sold separately, with a length of 59 inches (1.50m).

KTPS18-05930DT-2P-VI-P1 Quick Information

Product Type: AC/DC Desktop, Wall Adapter

Canonical Name: Kaga Electronics USA KTPS18-05930DT-2P-VI-P1 AC/DC Desktop Adapter

Subcategory: AC/DC Desktop, Wall Adapters

KTPS18-05930DT-2P-VI-P1 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

KTPS18-05930DT-2P-VI-P1 Features

18W AC/DC desktop adapter with 5.9V output.
Meets Level VI energy efficiency standards.
IEC 320-C8 input and barrel plug output.
Compact dimensions: 100mm x 50mm x 33mm.
Approved by CB, CE, cUL, GS, PSE, RCM, UL.

KTPS18-05930DT-2P-VI-P1 Applications

Powers commercial information technology equipment.
Suitable for networking and communication devices.
Used in point-of-sale terminals.
Ideal for security and surveillance systems.

KTPS18-05930DT-2P-VI-P1 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the output voltage of the KTPS18-05930DT-2P-VI-P1?

5.9V.

What is the form factor and size of this adapter?

Desktop (Class II) with dimensions 100.0mm x 50.0mm x 33.0mm.

What is the operating temperature range?

0°C to 40°C.

What is the output current?

3A.

What type of input connector does it use?

IEC 320-C8.

What efficiency level does this adapter meet?

Level VI.

What safety approvals does the KTPS18-05930DT-2P-VI-P1 have?

CB, CE, cUL, GS, PSE, RCM, UL.

Category	AC DC Desktop, Wall Adapters
Manufacturer Name	Kaga Electronics USA
Applications	ITE (Commercial)
Approval Agency	CB, CE, cUL, GS, PSE, RCM, UL
Cord Length	59" (1.50m)
Current	3A
Efficiency	Level VI
Form	Desktop (Class II)
Height	33.0mm (1.30")
Input Connector	IEC 320-C8
Input Type	Cord (Sold Separately)
Length	100.0mm (3.94")
Operating Temperature	0°C ~ 40°C
Output Connector	Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Polarization	Positive Center
Power (Watts)	18 W
Region Utilized	International
SVHC Present	Not Present
Tape & Reel	No
Voltage	5.9V
Width	50.0mm (1.97")
