| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Mounting Type | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

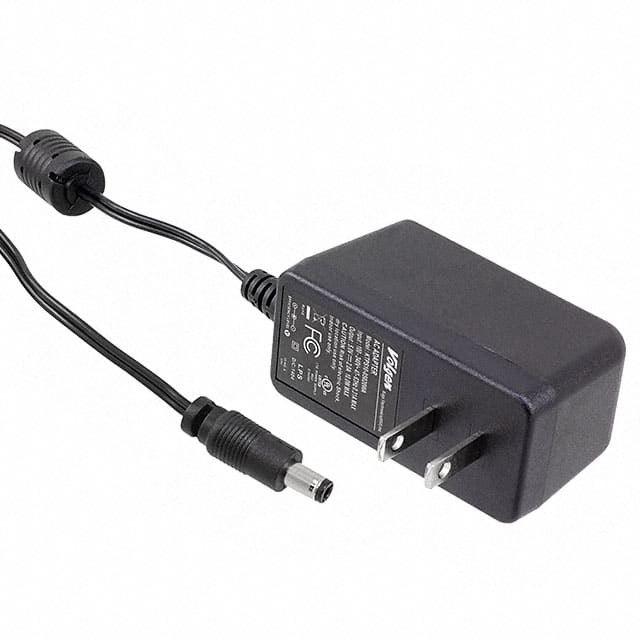

This Kaga Electronics USA AC/DC wall mount adapter, part number KTPS10-05020WA-CY(2.5X5.5 C+), delivers 10 watts of power with a stable 5VDC output. Designed for ITE (Commercial) applications, it features a NEMA 1-15P input connector and a standard barrel plug output (2.5mm ID x 5.5mm OD).
The adapter operates within a 0°C to 40°C temperature range and complies with Level V efficiency standards, making it suitable for energy-conscious designs. Its compact dimensions (72.0mm x 34.0mm x 42.0mm) and wall-mount form factor (Class II) facilitate easy integration into various systems.
Key specifications include a 2A current rating and a 59-inch (1.50m) cord length. The device is designed for North American regions and carries IEC approval agency certification.
The adapter provides a 5VDC output with a 2A current rating.
This adapter has a power rating of 10W.
The adapter operates between 0°C and 40°C.
It features a NEMA 1-15P input connector and a 2.5mm I.D. x 5.5mm O.D. barrel plug output.
The adapter meets Level V efficiency standards.
The adapter measures 72.0mm in length, 34.0mm in width, and 42.0mm in height.
