| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Dielectric Withstanding Voltage | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Mounting Type | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Ripple | |
| Standard Number | |
| Storage Temperature | |
| Voltage |

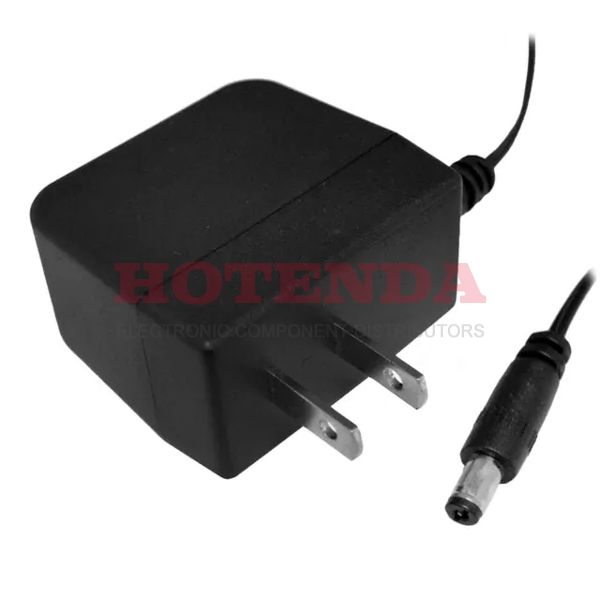

This AC/DC wall mount adapter, model KTPS05-09006U from Kaga Electronics USA, provides a stable 9V output with a maximum current of 600mA, delivering up to 5.4W of power. It is designed for universal input, accepting AC voltages from 100 to 240VAC and operating at frequencies of 50-60Hz.
The adapter features Level V efficiency and includes essential protections such as overvoltage, overcurrent, and short circuit protection. Its compact mechanical dimensions (52 x 29 x 46mm) and wall mount form factor make it suitable for various ITE (Commercial) applications.
Key specifications include a typical ripple of 1-2% Vp-p, a hold-up time of 10mS, and a transient response of 0.5mS. The operating temperature range is 0°C to 40°C, with humidity levels between 20-80% Rh. The output connector is a standard 5.5 x 2.1 x 9.5mm barrel plug with positive center polarization.
100-240 VAC at 50-60 Hz.
9V DC at 0.6A, with 5.4W power.
0°C to 40°C.
Wall mount (Class II).
Barrel plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm, positive center.
Level V.
UL/cUL.
