Mfr Part #:

KTA1552EDT-TR

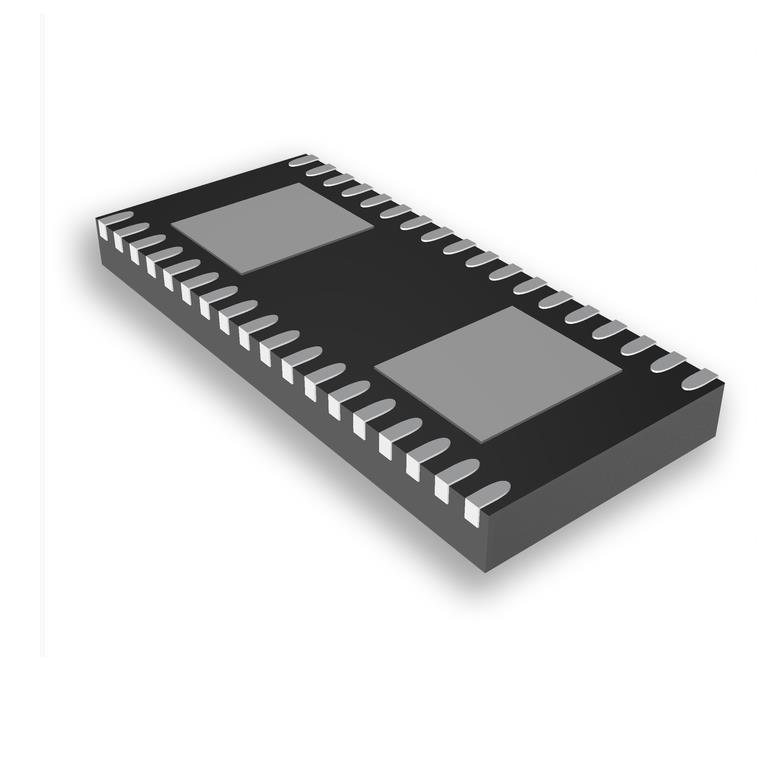

Quad channel active EMI and ESD suppressor for Ethernet applications. Provides up to 10dB common mode noise suppression and robust ESD protection up to ±25kV air discharge.

✓ Total Stock: 44 pcs

$ Price Range: $1.81 - $3.44

KTA1552EDT-TR Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	44 pcs On Request	44 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

KTA1552EDT-TR Description

Short technical summary and product information.

The KTA1552EDT-TR is a quad channel active EMI and ESD suppressor from Kinetic Technologies, designed for Ethernet applications. It integrates patented Active Choke technology to provide up to 10dB of common mode noise suppression over 1MHz to 125MHz when used with Ethernet magnetics, helping systems meet CISPR22 and FCC Part 15 Class B requirements.

The device includes robust built-in ESD suppressors that protect the Ethernet PHY from transient overvoltage events, with IEC 61000-4-2 air discharge protection of ±25kV and contact discharge of ±12kV. It also meets JESD22-A114 HBM ESD of ±8kV and cable discharge event (CDE) of ±12kV.

The KTA1552 operates from a single 2.5V or 3.3V power rail and features an open drain output stage that can be biased from 1.8V to 3.3V using a transformer center-tap supply. Typical power consumption is 90mW. The device is available in a 36-pin DFN package (9mm x 4mm) with exposed pad for surface mount assembly, operating over the industrial temperature range of -40°C to +85°C.

KTA1552EDT-TR Quick Information

Product Type: Active EMI and ESD Suppressor IC

Series: KTA1552

Canonical Name: Quad Channel Active EMI & ESD Suppressor for Ethernet Applications

Subcategory: Surge Suppression ICs

KTA1552EDT-TR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

KTA1552EDT-TR Estimated Pricing

Qty	Low	High
1+	$3.44	$3.44
10+	$2.59	$2.59
25+	$2.37	$2.37
100+	$2.14	$2.14
250+	$2.02	$2.02
500+	$2.00	$2.00
1,000+	$1.90	$1.90
2,000+	$1.86	$1.86
3,000+	$1.83	$1.83
5,000+	$1.81	$1.81

Estimated market price range - modelled values for guidance only, not live distributor offers.

KTA1552EDT-TR Features

Quad channel active EMI and ESD suppressor.
Provides up to 10dB common mode noise suppression.
ESD protection up to ±25kV air discharge.
Operates from single 2.5V or 3.3V supply.
Surface mount DFN-36 package with exposed pad.

KTA1552EDT-TR Applications

Used in Ethernet PHY EMI suppression circuits.
Ideal for meeting CISPR22 and FCC Part 15 Class B.
Protects Ethernet interfaces from ESD and CDE events.
Suitable for industrial temperature range applications.

KTA1552EDT-TR FAQs

6 frequently asked questions generated from this part’s specifications.

What is the operating supply voltage?

2.5V or 3.3V single power rail.

What package does the KTA1552EDT-TR come in?

36-VFDFN Exposed Pad (36-DFN 9x4mm) surface mount package.

What is the operating temperature range?

-40°C to +85°C (industrial temperature range).

Is the KTA1552EDT-TR RoHS compliant?

Yes, RoHS3 compliant per datasheet.

What ESD protection levels does the KTA1552EDT-TR provide?

IEC 61000-4-2 air discharge ±25kV, contact discharge ±12kV; HBM ±8kV; CDE ±12kV.

How much common mode noise suppression does the KTA1552EDT-TR provide?

Up to 10dB over 1MHz to 125MHz when used with Ethernet magnetics.

Category	Surge Suppression ICs
Manufacturer Name	Kinetic Technologies HK Ltd
Industrial Grade	Yes
Mounting Type	Surface Mount
Number of Channels	4
Number of Pins	36
Operating Temperature Range	-40°C to +85°C
Power Consumption	90 mW
Supplier Device Package	36-DFN (9x4)
Technology	Internal Switch
