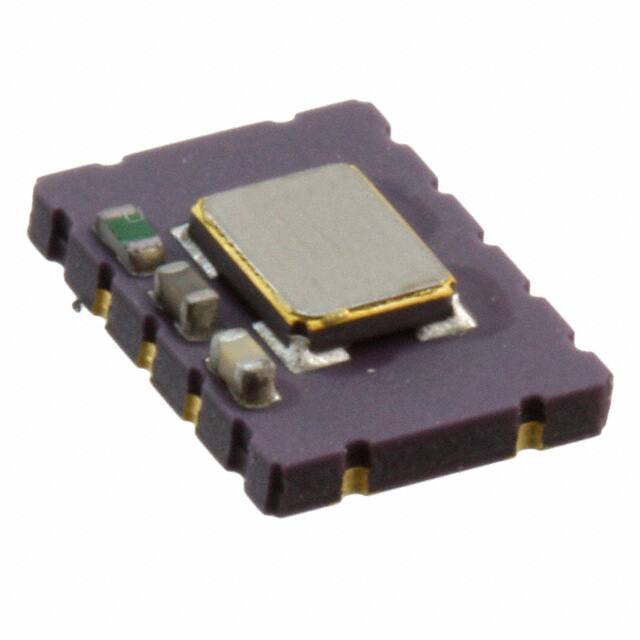

KT7050A20000KAW33TAD The Kyocera AVX KT7050A20000KAW33TAD is a TCXO oscillator with a frequency of 20 MHz and a stability of ±280ppb. It operates at 3.3V and has a current consumption of 5mA.
Mfr Part #:

KT7050A20000KAW33TAD

Available from 1 distributors
Mfr Name: Kyocera AVX
Kyocera AVX
The Kyocera AVX KT7050A20000KAW33TAD is a TCXO oscillator with a frequency of 20 MHz and a stability of ±280ppb. It operates at 3.3V and has a current consumption of 5mA.
✓ Total Stock: 129 pcs
$ Price Range: $0.50

KT7050A20000KAW33TAD Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
129 pcs
On Request
129 pcs On Request 1 On Request On Request 22+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KT7050A20000KAW33TAD Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Base Resonator
Current
Frequency
Frequency Stability
Function
Height
Industrial Grade
Length
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Output
Tape & Reel
Type
Voltage
Width
View Similar Products (0)

KT7050A20000KAW33TAD Description

Short technical summary and product information.

This Kyocera AVX KT7050A20000KAW33TAD is a Temperature Compensated Crystal Oscillator (TCXO) designed for various electronic applications. It operates at a frequency of 20 MHz with a frequency stability of ±280ppb, ensuring precise timing.



The oscillator requires an operating voltage of 3.3V and consumes a current of 5mA. It features a CMOS output and an Enable/Disable function.



Designed for surface mounting, this component comes in an 8-SMD, No Lead package. Its dimensions are 7.00mm in length, 5.00mm in width, and 1.70mm in height. The operating temperature range is -40°C to 85°C.

KT7050A20000KAW33TAD Quick Information

Product Type: TCXO Oscillator
Canonical Name: Kyocera AVX KT7050A20000KAW33TAD TCXO Oscillator
Subcategory: TCXO

KT7050A20000KAW33TAD Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

KT7050A20000KAW33TAD Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

KT7050A20000KAW33TAD Features

  • TCXO oscillator with 20 MHz frequency.
  • High frequency stability of ±280ppb.
  • Operates at 3.3V with 5mA current.
  • Surface mount 8-SMD, No Lead package.
  • Wide operating temperature range of -40°C to 85°C.

KT7050A20000KAW33TAD Applications

  • Ideal for precise timing circuits.
  • Suitable for frequency control applications.
  • Used in systems requiring stable oscillation.
  • Component for embedded systems design.

KT7050A20000KAW33TAD FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the KT7050A20000KAW33TAD oscillator?

The operating voltage is 3.3V.

What is the package type for this TCXO oscillator?

It is an 8-SMD, No Lead package.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

Is the KT7050A20000KAW33TAD RoHS compliant?

Yes, it is RoHS3 Compliant.
