| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27,000 pcs
|
27000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Resonator | |
| Current | |
| Frequency | |
| Frequency Stability | |
| Height | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Type | |
| Voltage | |
| Width |

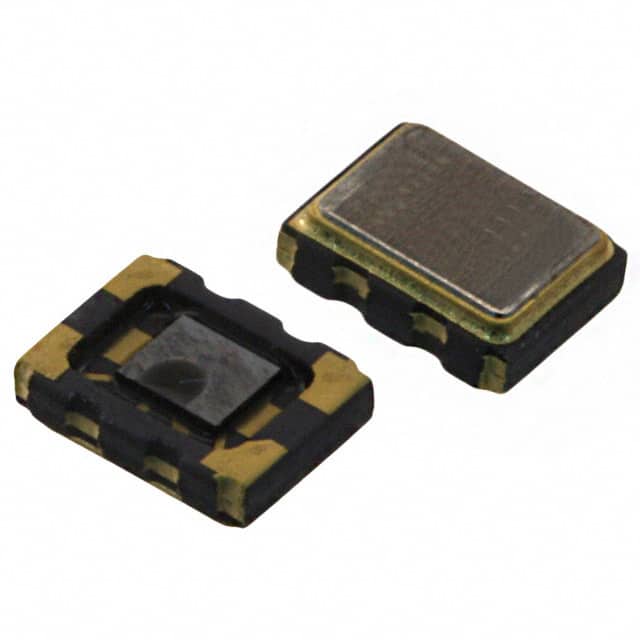

The KT3225R40000ECV28TBA is a Temperature Compensated Crystal Oscillator (TCXO) manufactured by Kyocera AVX. It provides a stable 40 MHz reference clock with a clipped sine wave output waveform.
This TCXO offers a frequency stability of ±2.5 ppm over the operating temperature range of -30°C to 80°C. It operates from a 2.8V supply voltage and draws a typical supply current of 2 mA. The base resonator is a crystal.
The oscillator is housed in a compact 4-SMD, No Lead package with dimensions of 3.20 mm x 2.50 mm x 1.05 mm. It is designed for surface mount assembly, making it suitable for space-constrained applications.
TCXOs are commonly used in wireless communications, GPS modules, and other applications requiring precise frequency control over temperature variations. The clipped sine wave output is typical for low-power TCXO designs.
| Qty | Low | High |
|---|---|---|
| 3,000+ | $1.97 | $1.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage is 2.8V.
It comes in a 4-SMD, No Lead package.
-30°C to 80°C.
It is marked as RoHS3 Compliant, but this is unverified.
40 MHz.
±2.5 ppm.
Clipped Sine Wave.
