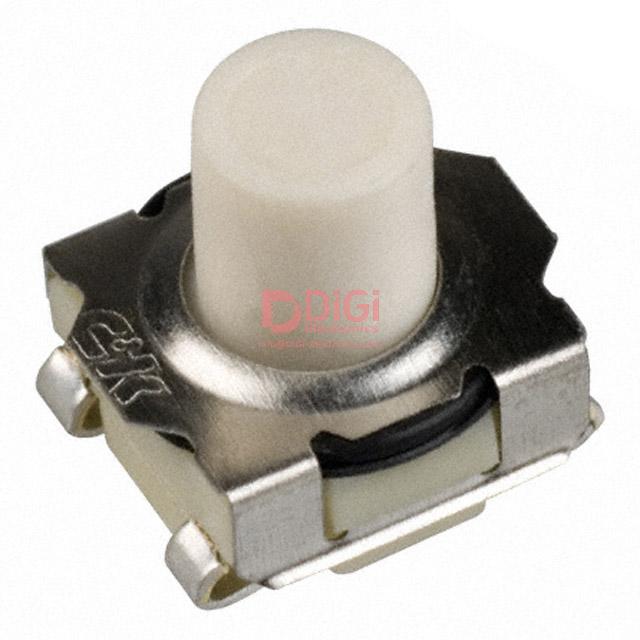

KT11P2SM The C&K KT11P2SM is a sealed tactile switch featuring a SPST-NO circuit and a 1VA @ 50V contact rating. It is designed for surface mount applications.
Mfr Part #:

KT11P2SM

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K KT11P2SM is a sealed tactile switch featuring a SPST-NO circuit and a 1VA @ 50V contact rating. It is designed for surface mount applications.
✓ Total Stock: 150 pcs
$ Price Range: $0.75

KT11P2SM Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
150 pcs
On Request
150 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KT11P2SM Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Height off PCB, Vertical
Actuator Orientation
Actuator Type
Circuit
Contact Rating @ Voltage
Contact Resistance
Features
Illumination
Ingress Protection
Insulation Resistance
Mounting Type
Operating Temperature
Outline
Switch Function
Tape & Reel
Termination Style
View Similar Products (0)

KT11P2SM Description

Short technical summary and product information.

The C&K KT11P2SM is a sealed tactile switch from the KT Series, designed for reliable operation in demanding environments. It features a Single Pole Single Throw Normally Open (SPST-NO) circuit configuration and a contact rating of 1VA at 50V AC/DC.



This switch offers a high degree of protection with an IP57 rating, providing resistance against dust and temporary immersion. The operating temperature range is from -40°C to 90°C, making it suitable for a wide array of applications. The termination style is Gull Wing, and it is designed for surface mounting with a vertical actuator height of 5.36mm.



Key features include internal actuator seals and insert-molded terminals for enhanced durability and ease of soldering. The tin-lead plated terminals improve solderability. Typical applications include telecommunications, computer products, and instrumentation.



The switch has a mechanical and electrical life of 100,000 make-and-break cycles at full load. Its dimensions are 6.38mm x 6.22mm, and it is non-illuminated.

KT11P2SM Quick Information

Product Type: Tactile Switch
Series: KT Series
Canonical Name: C&K KT11P2SM SPST-NO Tactile Switch
Subcategory: Tactile Switch

KT11P2SM Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

KT11P2SM Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

KT11P2SM Features

  • Sealed tactile switch with IP57 rating.
  • SPST-NO circuit configuration.
  • 1VA @ 50V AC/DC contact rating.
  • Surface mountable with Gull Wing termination.
  • Wide operating temperature range of -40°C to 90°C.

KT11P2SM Applications

  • Used in consumer electronic devices
  • Suitable for industrial control panels
  • Ideal for instrumentation applications
  • Designed for environments with dust and water exposure

KT11P2SM FAQs

5 frequently asked questions generated from this part’s specifications.
What is the contact rating for the KT11P2SM tactile switch?

The contact rating is 1VA at 50V AC/DC.

What is the operating temperature range for this switch?

The operating temperature range is -40°C to 90°C.

What is the ingress protection rating of the KT11P2SM?

The ingress protection rating is IP57, providing dust protection and waterproofing.

What type of mounting is required for the KT11P2SM?

The KT11P2SM is designed for surface mounting.

What is the circuit configuration of the KT11P2SM?

The circuit configuration is SPST-NO (Single Pole Single Throw Normally Open).
