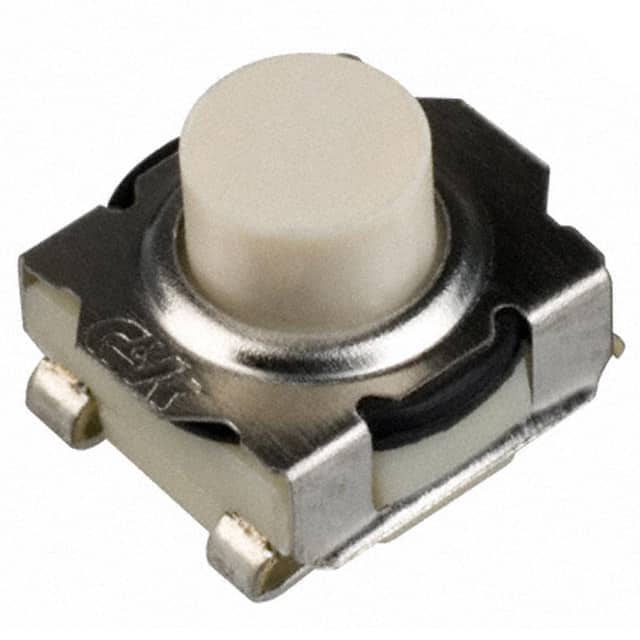

KT11P2JM34LFS The C&K Components KT11P2JM34LFS is a tactile switch with an SPST-NO circuit and a contact rating of 1VA @ 32V AC/DC. It features a sealed design with IP57 ingress protection.
Mfr Part #:

KT11P2JM34LFS

Available from 2 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components KT11P2JM34LFS is a tactile switch with an SPST-NO circuit and a contact rating of 1VA @ 32V AC/DC. It features a sealed design with IP57 ingress protection.
✓ Total Stock: 2,959 pcs
$ Price Range: $0.75

KT11P2JM34LFS Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
2,950 pcs
On Request
2950 pcs On Request 1 On Request On Request N/A On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
9 pcs
On Request
9 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KT11P2JM34LFS Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Height off PCB, Vertical
Actuator Orientation
Actuator Type
Circuit
Contact Rating @ Voltage
Contact Resistance
Features
Illumination
Ingress Protection
Insulation Resistance
Lead Style
Mounting Type
Operating Force
Operating Temperature
Outline
Switch Function
Tape & Reel
Termination Style
View Similar Products (0)

KT11P2JM34LFS Description

Short technical summary and product information.

The C&K Components KT11P2JM34LFS is a tactile switch from the KT Series, designed for surface mount applications with J lead termination. It offers an SPST-NO (Single Pole Single Throw, Normally Open) contact arrangement and is rated for 1VA at a maximum of 32V AC or DC.



This switch is sealed and provides IP57 ingress protection, making it suitable for environments where dust and water resistance are important. The operating temperature range for the silver-plated version is -40°C to 90°C. It has an electrical and mechanical life of 100,000 make-and-break cycles at full load.



Key specifications include a contact resistance below 50 mΩ typical, insulation resistance of 1 GΩ minimum, and a dielectric strength of 250 Vrms minimum. The actuator height off the PCB is 5.36mm, with overall dimensions of 6.38mm x 6.22mm. The operating force is 300gf.



Typical applications for this type of switch include telecommunications, computer products, instrumentation, and power supplies. It is RoHS 3 compliant and has an MSL of 1.

KT11P2JM34LFS Quick Information

Product Type: Tactile Switch
Series: KT Series
Canonical Name: C&K Components KT11P2JM34LFS Tactile Switch
Subcategory: Tactile Switch

KT11P2JM34LFS Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

KT11P2JM34LFS Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

KT11P2JM34LFS Features

  • Sealed tactile switch with IP57 protection.
  • SPST-NO circuit, rated 1VA @ 32V AC/DC.
  • Surface mount with J lead termination.
  • Operating temperature range -40°C to 90°C.
  • 100,000 cycle electrical and mechanical life.

KT11P2JM34LFS Applications

  • Suitable for telecommunications equipment.
  • Used in computer product designs.
  • Ideal for instrumentation applications.
  • Applicable in power supply units.

KT11P2JM34LFS FAQs

5 frequently asked questions generated from this part’s specifications.
What is the contact rating for the KT11P2JM34LFS tactile switch?

The contact rating is 1VA maximum at 32V AC or DC maximum.

What is the operating temperature range for this switch?

The operating temperature range is -40°C to 90°C for the silver-plated version.

What ingress protection does the KT11P2JM34LFS offer?

It offers IP57 protection, meaning it is dust protected and waterproof.

What is the electrical and mechanical life of this tactile switch?

The switch has a life of 100,000 make-and-break cycles at full load.

What type of termination does the KT11P2JM34LFS use?

It uses SMT termination with J leads.
