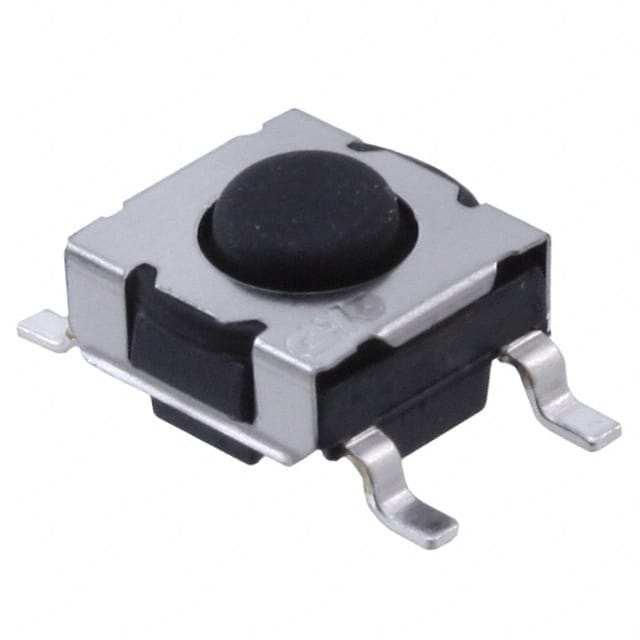

KT11B1SM34LFS The C&K Components KT11B1SM34LFS is a tactile switch with an SPST-NO circuit and a contact rating of 1VA at 32V AC/DC. It is designed for surface mounting.
Mfr Part #:

KT11B1SM34LFS

Available from 2 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components KT11B1SM34LFS is a tactile switch with an SPST-NO circuit and a contact rating of 1VA at 32V AC/DC. It is designed for surface mounting.
✓ Total Stock: 1,114 pcs
$ Price Range: $0.75

KT11B1SM34LFS Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
1,100 pcs
On Request
1100 pcs On Request 10 On Request On Request On Request On Request On Request
Hybrid Electronics ✓
Non-Authorised Inventory information
14 pcs
On Request
14 pcs On Request 1 On Request On Request 1137 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KT11B1SM34LFS Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Actuator Height off PCB, Vertical
Actuator Orientation
Actuator Type
Automotive Grade
Circuit
Contact Rating @ Voltage
Contact Resistance
Features
Illumination
Industrial Grade
Ingress Protection
Insulation Resistance
Medical Grade
Military Grade
Mounting Type
Operating Force
Operating Temperature
Outline
Switch Function
Tape & Reel
Termination Style
View Similar Products (0)

KT11B1SM34LFS Description

Short technical summary and product information.

The C&K Components KT11B1SM34LFS is a sealed tactile switch from the KT Series, designed for surface mounting with gull wing terminations. It features a Single Pole Single Throw Normally Open (SPST-NO) contact arrangement and a contact rating of 1VA maximum at 32V AC or DC.



This switch operates within a temperature range of -40°C to 90°C and offers an ingress protection rating of IP57, providing protection against dust and water. The actuator height off the PCB is 3.64mm, and the overall outline dimensions are 6.38mm x 6.22mm. The switch function is Off-Mom, and it is non-illuminated.



Typical applications for this type of switch include telecommunications, computer products, instrumentation, and power supplies. The switch is RoHS compliant and compatible, with silver-plated contacts. It is supplied in anti-static tape and reels.

KT11B1SM34LFS Quick Information

Product Type: Tactile Switch
Series: KT Series
Canonical Name: C&K Components KT11B1SM34LFS Tactile Switch
Subcategory: Tactile Switch

KT11B1SM34LFS Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

KT11B1SM34LFS Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

KT11B1SM34LFS Features

  • Sealed tactile switch for reliable operation.
  • SPST-NO circuit configuration.
  • 1VA @ 32V AC/DC contact rating.
  • Surface mount with gull wing termination.
  • IP57 ingress protection rating.

KT11B1SM34LFS Applications

  • Suitable for telecommunications equipment.
  • Used in computer product designs.
  • Ideal for instrumentation applications.
  • Applicable in power supply units.

KT11B1SM34LFS FAQs

5 frequently asked questions generated from this part’s specifications.
What is the contact rating for the C&K Components KT11B1SM34LFS tactile switch?

The contact rating is 1VA maximum at 32V AC or DC.

What is the operating temperature range for this tactile switch?

The operating temperature range is -40°C to 90°C.

What is the ingress protection rating of the KT11B1SM34LFS?

The ingress protection rating is IP57.

What type of termination does the KT11B1SM34LFS use?

It uses Gull Wing termination style.

Is the C&K Components KT11B1SM34LFS RoHS compliant?

Yes, it is RoHS3 Compliant.
