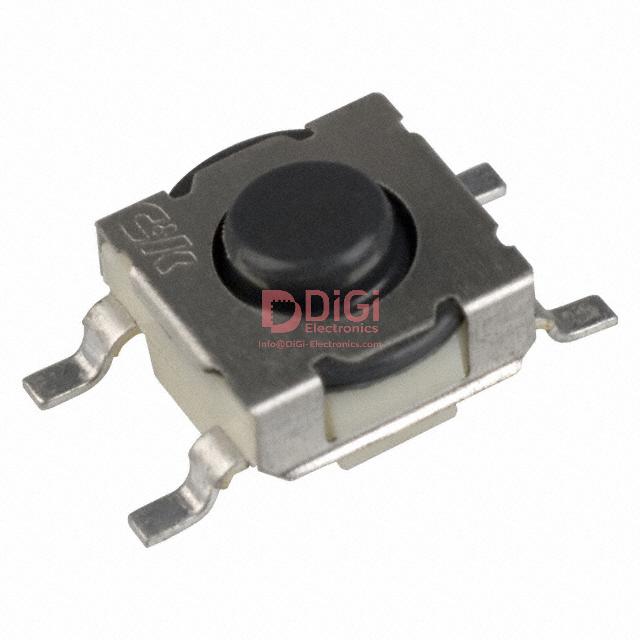

KT11B1SM The C&K Components KT11B1SM is a sealed tactile switch with a surface mount design and gull wing termination. It offers IP57 protection and a 1VA @ 50V AC/DC contact rating.
Mfr Part #:

KT11B1SM

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components KT11B1SM is a sealed tactile switch with a surface mount design and gull wing termination. It offers IP57 protection and a 1VA @ 50V AC/DC contact rating.
✓ Total Stock: 1,065 pcs
$ Price Range: $0.75

KT11B1SM Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1,065 pcs
On Request
1065 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KT11B1SM Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Height off PCB, Vertical
Actuator Orientation
Actuator Type
Circuit
Contact Rating @ Voltage
Contact Resistance
Features
Illumination
Ingress Protection
Insulation Resistance
Mounting Type
Operating Temperature
Outline
Switch Function
Tape & Reel
Termination Style
View Similar Products (0)

KT11B1SM Description

Short technical summary and product information.

The C&K Components KT11B1SM is a tactile switch designed for surface mount applications. It features a sealed construction providing IP57 ingress protection against dust and water.



This switch operates with a SPST-NO (Single Pole Single Throw Normally Open) circuit and has a contact rating of 1VA at 50V AC or DC. The mechanical and electrical life is rated for 100,000 make-and-break cycles at full load. Its operating temperature range is from -40°C to 90°C.



The KT11B1SM utilizes gull wing termination for secure surface mounting. The actuator orientation is top actuated, and it has a vertical actuator height off the PCB of 3.64mm. The switch outline measures 6.38mm x 6.22mm. It is non-illuminated.



Typical applications for this type of switch include telecommunications, computer products, and instrumentation where a sealed, reliable tactile switch is required.

KT11B1SM Quick Information

Product Type: Tactile Switch
Series: KT
Canonical Name: C&K Components KT11B1SM Tactile Switch
Subcategory: Tactile Switch

KT11B1SM Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

KT11B1SM Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

KT11B1SM Features

  • Sealed tactile switch with IP57 protection.
  • SPST-NO circuit, 1VA @ 50V AC/DC rating.
  • Surface mount with gull wing termination.
  • 100,000 cycle mechanical and electrical life.
  • Wide operating temperature range of -40°C to 90°C.

KT11B1SM Applications

  • Ideal for telecommunications equipment.
  • Suitable for computer product applications.
  • Used in various instrumentation devices.
  • Provides reliable tactile feedback in sealed systems.

KT11B1SM FAQs

6 frequently asked questions generated from this part’s specifications.
What is the contact rating for the C&K KT11B1SM tactile switch?

The contact rating is 1VA at 50V AC or DC maximum.

What is the mechanical and electrical life of the KT11B1SM switch?

The switch has a mechanical and electrical life of 100,000 make-and-break cycles at full load.

What is the operating temperature range for this tactile switch?

The operating temperature range is -40°C to 90°C.

What is the ingress protection rating of the C&K KT11B1SM?

The ingress protection rating is IP57, providing protection against harmful dust and temporary immersion.

What type of termination does the KT11B1SM use?

The termination style is Gull Wing.

What is the mounting type for the KT11B1SM?

The mounting type is Surface Mount.
