| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Contact Resistance | |
| Features | |
| Illumination | |
| Ingress Protection | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Tape & Reel | |
| Termination Style |

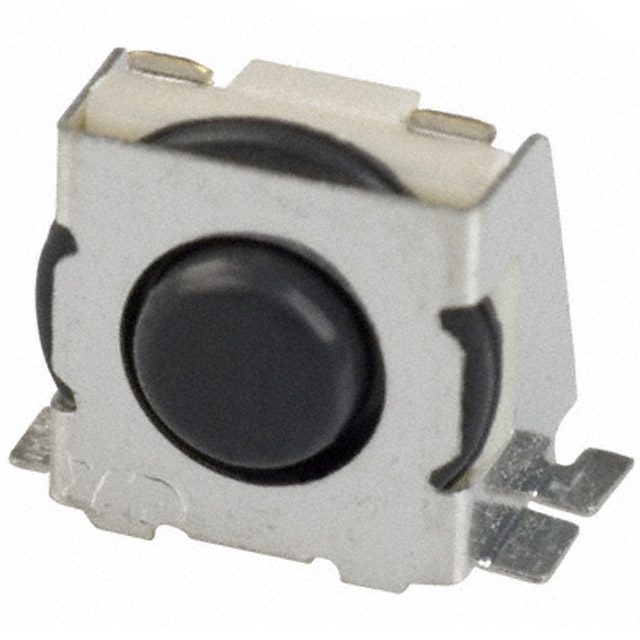

The C&K KT11B1SAM35LFG is a tactile switch from the KT Series, designed for surface mount applications with a right-angle orientation. It offers a sealed construction, providing IP57 ingress protection against dust and water.
This switch features a Single Pole Single Throw Normally Open (SPST-NO) contact arrangement and is rated for a maximum of 1VA at 32V AC or DC. The electrical and mechanical life is rated for 100,000 make-and-break cycles at full load. It operates within a temperature range of -40°C to 90°C for the silver plated version and -40°C to 125°C for the gold plated version.
The KT11B1SAM35LFG has a contact resistance below 50 mΩ typical initial and an insulation resistance of at least 10 GΩ. Its termination style is Gull Wing, suitable for SMT processes. The switch has an operating force of 300gf and a standard actuator type.
Typical applications for this tactile switch include telecommunications, computer products, instrumentation, and power supplies. Its robust design and sealing make it suitable for demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 1VA maximum at 32V AC or DC.
The operating temperature range is -40°C to 90°C for the silver plated version and -40°C to 125°C for the gold plated version.
The ingress protection rating is IP57, providing protection against harmful dust deposits and full-scale voltage protection.
It uses a Surface Mount, Right Angle mounting type with Gull Wing termination style.
The electrical and mechanical life is 100,000 make-and-break cycles at full load.
