| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
55 pcs
|
55 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Contact Resistance | |
| Features | |
| Illumination | |
| Ingress Protection | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature | |
| Outline | |
| Storage Temperature | |
| Switch Function | |
| Tape & Reel | |
| Termination Style |

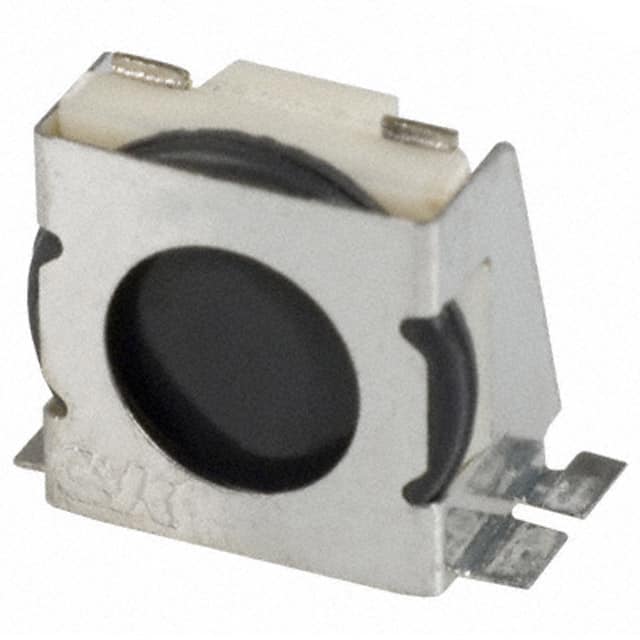

The C&K Components KT11B0SAM is a sealed tactile switch designed for reliable operation in various applications. It features a Single Pole Single Throw Normally Open (SPST-NO) circuit configuration and a momentary (Off-Mom) switch function.
This tactile switch has a contact rating of 1VA maximum at 50V AC or DC. It is built to withstand 100,000 make-and-break cycles at full load, ensuring durability. The contact resistance is typically below 50 milliohms initially under specific test conditions (2-4 V DC, 100 mA).
Designed for surface mounting with a right-angle orientation, the KT11B0SAM utilizes a gull wing termination style. Its operating temperature range spans from -40°C to 90°C. The switch is sealed to achieve an IP57 ingress protection rating, providing protection against dust and temporary immersion.
Key features include internal actuator sealing and insert-molded terminals that permit soldering and cleaning. The terminals are tin-lead plated for improved solderability. This model has a flush actuator type and is non-illuminated. Its dimensions are 7.57mm x 4.38mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 1VA maximum at 50V AC or DC.
The operating temperature range is -40°C to 90°C.
The ingress protection rating is IP57, offering protection against dust and temporary immersion.
It features a Single Pole Single Throw Normally Open (SPST-NO) circuit.
It is designed for surface mounting with a right-angle orientation.
