Mfr Part #:

KSZ8995X

The Micrel Inc. KSZ8995X is a highly integrated 5-port 10/100Mbps Layer-2 QoS switch. It offers features like dual MII interface, VLAN support, and broadcast storm protection.

✓ Total Stock: 7,861 pcs

$ Price Range: $0.75

KSZ8995X Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Romaks Technologies ✓ Non-Authorised Inventory information	7,861 pcs On Request	7861 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

KSZ8995X Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Micrel Inc.
Control Interface	MDC/MDIO
Interface	Dual MII
Lead Style	Gull Wing
Number of Ports	5
SVHC Present	Not Present

View Similar Products (0)

KSZ8995X Description

Short technical summary and product information.

The Micrel Inc. KSZ8995X is a highly integrated Layer-2 QoS switch designed for cost-sensitive 10/100Mbps switch systems. It features five 10/100 transceivers, five MAC units, and a high-speed non-blocking switch fabric.

Key features include support for 10BaseT, 100BaseTX, and 100BaseFX (on ports 4 and 5). It offers advanced Quality of Service (QoS) with per-port, 802.1p, and DiffServ prioritization schemes. The device supports VLAN tagging and untagging on a per-port basis, along with broadcast storm protection.

For flexibility, the KSZ8995X includes a dual MII interface configuration and supports huge frame sizes up to 1916 bytes. It also provides both hardware and software power-down modes, and a MDC/MDIO control interface. The switch fabric has a memory bandwidth of 1.4Gbps and includes a 64KB frame buffer memory.

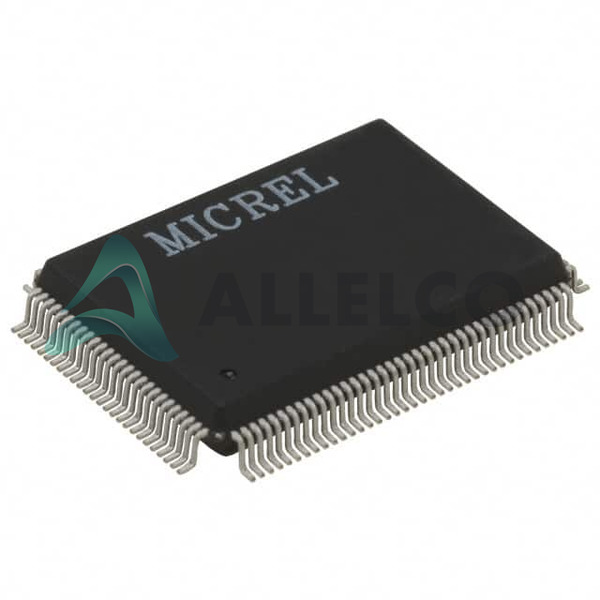

This switch IC is suitable for applications requiring efficient network traffic management and media conversion between fiber and copper. It is available in a PQFP package.

KSZ8995X Quick Information

Product Type: Switch IC

Series: KSZ8995X

Canonical Name: KSZ8995X Integrated 5-Port 10/100 QoS Switch

Subcategory: QoS Switch

KSZ8995X Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

KSZ8995X Estimated Pricing

Qty	Low	High
1+	$0.75	$0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

KSZ8995X Features

Integrated 5-port 10/100Mbps QoS switch.
Supports 10BaseT, 100BaseTX, and 100BaseFX.
Dual MII interface configuration.
VLAN tagging and broadcast storm protection.
64KB frame buffer memory.

KSZ8995X Applications

Cost-sensitive switch systems.
Fast Ethernet applications.
Fiber-to-copper media conversion.
Network traffic management.

KSZ8995X FAQs

7 frequently asked questions generated from this part’s specifications.

What package is the KSZ8995X available in?

The KSZ8995X is available in a PQFP package.

What is the switching fabric architecture of the KSZ8995X?

The KSZ8995X uses a shared memory-based switch fabric with fully non-blocking configuration.

Does the KSZ8995X support VLAN?

Yes, it supports port-based VLAN with tag/untag options on a per-port basis.

What PHY modes does the KSZ8995X support?

It supports 10BaseT, 100BaseTX, and 100BaseFX (FX on ports 4 and 5).

What QoS features are available on the KSZ8995X?

QoS/CoS packet prioritization supports per-port, 802.1p, and DiffServ based prioritization.

What is the frame buffer size of the KSZ8995X?

The on-chip frame buffer memory is 64 KB.

Does the KSZ8995X support broadcast storm protection?

Yes, it supports broadcast storm protection with percent control on a global and per-port basis.
