KSZ8993M-TR KSZ8993M-TR is a 10/100 integrated switch IC from Microchip Technology. It supports 10/100 MBps data rates with a 1.66-1.94V supply voltage and 800mW power dissipation.
Mfr Part #:

KSZ8993M-TR

Available from 1 distributors
Mfr Name: Microchip Technology
Microchip Technology
KSZ8993M-TR is a 10/100 integrated switch IC from Microchip Technology. It supports 10/100 MBps data rates with a 1.66-1.94V supply voltage and 800mW power dissipation.
✓ Total Stock: 26,128 pcs
$ Price Range: $0.75

KSZ8993M-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
26,128 pcs
On Request
26128 pcs On Request 1 On Request On Request 2020+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KSZ8993M-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Mounting Type
SVHC Present
Supplier Device Package
Tape & Reel
Type
View Similar Products (0)

KSZ8993M-TR Description

Short technical summary and product information.

The KSZ8993M-TR is a 10/100 integrated switch IC manufactured by Microchip Technology. It supports data rates of 10/100 MBps and operates with a supply voltage range of 1.66V to 1.94V. The device has a maximum power dissipation of 800mW and typical supply currents of 35mA and 92mA.



This integrated switch includes an internal memory buffer of 32KB and features three transceivers. It is designed for commercial temperature range operation from 0°C to 70°C.

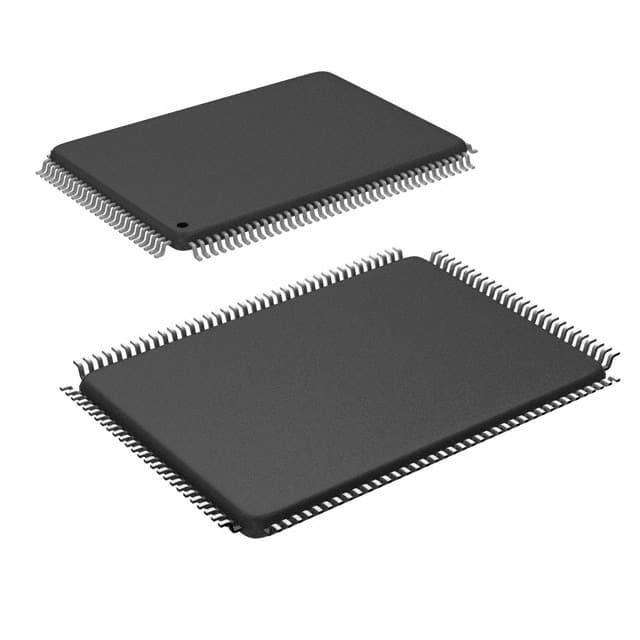

The part is housed in a 128-pin PQFP package, suitable for surface-mount assembly. It is intended for use in networking and communication applications requiring integrated switching functionality.

KSZ8993M-TR Quick Information

Product Type: Integrated Switch IC
Canonical Name: KSZ8993M-TR 10/100 Integrated Switch IC
Subcategory: Specialized ICs

KSZ8993M-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

KSZ8993M-TR Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

KSZ8993M-TR Features

  • Supports 10/100 MBps data rates.
  • Operates from 1.66V to 1.94V supply.
  • Maximum power dissipation of 800mW.
  • Includes 32KB internal memory buffer.
  • Three integrated transceivers on chip.

KSZ8993M-TR Applications

  • Used in Ethernet switch applications.
  • Ideal for embedded networking systems.
  • Suitable for industrial control networks.
  • Designed for 10/100 Base-TX interfaces.

KSZ8993M-TR FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the KSZ8993M-TR?

The operating temperature range is 0°C to 70°C.

What is the supply voltage requirement for the KSZ8993M-TR?

The supply voltage range is 1.66V minimum to 1.94V maximum.

What data rates does the KSZ8993M-TR support?

It supports 10/100 MBps data rates.

What is the power dissipation of the KSZ8993M-TR?

The maximum power dissipation is 800mW.
