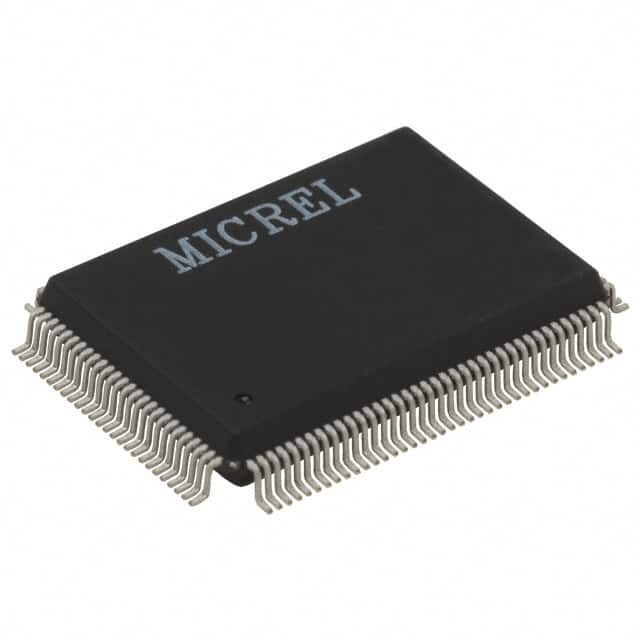

KSZ8993M The Microchip Technology KSZ8993M is a 10/100 Integrated Switch IC designed for network interface applications. It features a 128-PQFP package and operates within a supply voltage range of 1.66V to 1.94V.
Mfr Part #:

KSZ8993M

Available from 3 distributors
Mfr Name: Microchip Technology
Microchip Technology
The Microchip Technology KSZ8993M is a 10/100 Integrated Switch IC designed for network interface applications. It features a 128-PQFP package and operates within a supply voltage range of 1.66V to 1.94V.
✓ Total Stock: 40,110 pcs
$ Price Range: $0.75

KSZ8993M Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
26,124 pcs
On Request
26124 pcs On Request 1 On Request On Request 2020+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
7,386 pcs
On Request
7386 pcs On Request 1 On Request On Request On Request On Request On Request
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
6,600 pcs
On Request
6600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KSZ8993M Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Data Rate
Duplex
Mounting Type
Supplier Device Package
Supplier Package
Type
View Similar Products (0)

KSZ8993M Description

Short technical summary and product information.

The KSZ8993M from Microchip Technology is a specialized integrated circuit designed as a 10/100 Mbps Ethernet switch. This device is housed in a 128-PQFP (14x20 mm) surface-mount package, suitable for various network interface applications.



Key electrical specifications include a data rate of 10/100 Mb/s, supporting both full and half duplex modes. The operating supply voltage ranges from a minimum of 1.66V to a maximum of 1.94V, with a typical supply current of 35mA and a maximum of 92mA. It offers 3 primary switch ports and 3 transceivers, with support for MII/MIIM/SNI and I2C, SMI, SPI interfaces.



The operating temperature range for the KSZ8993M is from 0°C to 70°C. It features an internal memory buffer of 32KB and supports VLANs. The device is specified as RoHS3 Compliant and REACH Unaffected, with a Moisture Sensitivity Level (MSL) of 1 Unlimited.

KSZ8993M Quick Information

Product Type: Network Switch IC
Series: KSZ8993
Canonical Name: 10/100 Integrated Switch IC
Subcategory: Specialized ICs

KSZ8993M Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

KSZ8993M Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

KSZ8993M Features

  • 10/100 Mbps integrated Ethernet switch.
  • Supports full and half duplex operation.
  • 128-PQFP surface mount package.
  • Wide operating temperature range.
  • RoHS3 compliant and REACH unaffected.

KSZ8993M Applications

  • Ideal for network interface applications.
  • Suitable for embedded network systems.
  • Used in communication infrastructure.
  • Enables 10/100 Mbps connectivity.

KSZ8993M FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the KSZ8993M?

1.66V to 1.94V.

What package does the KSZ8993M come in?

128-PQFP (14x20mm) surface mount package.

What is the operating temperature range of the KSZ8993M?

0°C to 70°C.

Does the KSZ8993M support VLAN?

Yes, it supports VLAN.

What interfaces does the KSZ8993M use?

I2C, MII, SMI, SNI, SPI.

What is the maximum supply current of the KSZ8993M?

92 mA.

How many ports does the KSZ8993M have?

3 ports.
