Mfr Part #:

KSZ8895MLXI

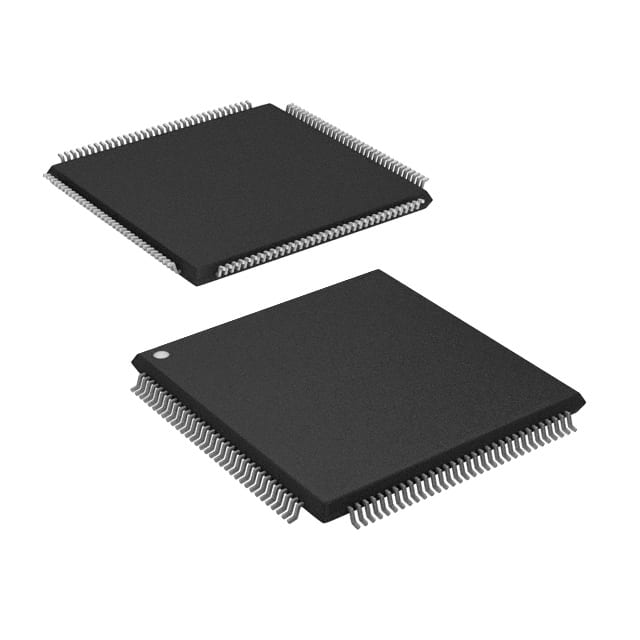

The Microchip Technology KSZ8895MLXI is a 5-port 10/100 managed Ethernet switch. It features a 128-LQFP package and operates within a temperature range of -40°C to 85°C.

✓ Total Stock: 8,423 pcs

KSZ8895MLXI Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	6,413 pcs On Request	6413 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	2,010 pcs On Request	2010 pcs	On Request	1	On Request	On Request	24+	On Request	On Request

KSZ8895MLXI Description

Short technical summary and product information.

The KSZ8895MLXI from Microchip Technology is a 5-port, 10/100 Mbps managed Ethernet switch designed for various networking applications. This device supports multiple supply voltage ranges, including 1.14V to 1.32V, 1.71V to 1.89V, 2.375V to 2.625V, and 3.135V to 3.465V, with typical operating voltages at 1.2V, 1.8V, 2.5V, and 3.3V. It offers a data rate of up to 100 Mbps and supports standards such as IEEE 802.3 and 10/100 Base-T/TX PHY.

The switch features a 64KB internal memory buffer and utilizes MII/RMII and other interface types including I2C, SMI, and SPI. It is housed in a 128-LQFP package, measuring 14x14mm, and is designed for surface mounting (SMD/SMT). The operating temperature range is specified from -40°C to 85°C, making it suitable for industrial environments.

Key electrical characteristics include a supply current of 107mA and support for VLANs. The device also includes integrated LED drivers and fiber support. The KSZ8895MLXI is compliant with RoHS3 standards.

KSZ8895MLXI Quick Information

Product Type: Ethernet Switch

Canonical Name: KSZ8895MLXI 5-Port 10/100 Managed Ethernet Switch

Subcategory: Controller

KSZ8895MLXI Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

KSZ8895MLXI Features

5-port 10/100 Mbps managed Ethernet switch.
Multiple supply voltage options available.
64KB internal memory buffer size.
Operates from -40°C to 85°C.
RoHS3 compliant.

KSZ8895MLXI Applications

Suitable for industrial networking.
Supports 10/100 Base-T/TX PHY.
Integrates VLAN support.
Features integrated LED drivers.
Offers fiber connectivity support.

KSZ8895MLXI FAQs

6 frequently asked questions generated from this part’s specifications.

What is the operating voltage range for the KSZ8895MLXI?

The operating voltage range is 1.14V to 1.32V, 1.71V to 1.89V, 2.375V to 2.625V, and 3.135V to 3.465V.

What package type is the KSZ8895MLXI supplied in?

The KSZ8895MLXI is supplied in a 128-LQFP package.

What is the operating temperature range for this switch?

The operating temperature range is -40°C to 85°C.

Is the KSZ8895MLXI RoHS compliant?

Yes, the KSZ8895MLXI is RoHS3 Compliant.

What is the data rate of the KSZ8895MLXI?

The data rate is 10 Mb/s and 100 Mb/s.

How many ports does the KSZ8895MLXI have?

It has 5 ports.

Category	Controllers
Manufacturer Name	Microchip Technology
AEC Qualified	No
Automotive Grade	No
Current	107mA
Data Rate	10 Mb/s, 100 Mb/s
Function	Switch
Industrial Grade	No
Interface	MII/RMII
Lead Spacing	14 mm
Medical Grade	No
Military Grade	No
Mounting Style	SMD/SMT
Mounting Type	Surface Mount
Number of Ports	5
Operating Temperature	-40°C ~ 85°C
Operating Voltage	1.14V, 1.71V, 2.375V, 3.135V
Protocol	Ethernet
Standards	IEEE 802.3, 10/100 Base-T/TX PHY
Supplier Device Package	128-LQFP (14x14)
Supplier Package	128-LQFP (14x14)
Voltage	1.14V ~ 1.32V, 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V
