KSZ8051RNL The Micrel Inc. KSZ8051RNL is an AEC-Q100 qualified Ethernet transceiver supporting 10Base-T/100Base-TX speeds. It features an RMII interface and operates on a single 3.3V power supply.
Mfr Part #:

KSZ8051RNL

Available from 1 distributors
Mfr Name: Micrel Inc.
Micrel Inc.
The Micrel Inc. KSZ8051RNL is an AEC-Q100 qualified Ethernet transceiver supporting 10Base-T/100Base-TX speeds. It features an RMII interface and operates on a single 3.3V power supply.
✓ Total Stock: 9,040 pcs
$ Price Range: $0.99

KSZ8051RNL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
9,040 pcs
On Request
9040 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KSZ8051RNL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Industrial Grade
Interface
Mounting Type
Storage Temperature
View Similar Products (0)

KSZ8051RNL Description

Short technical summary and product information.

The KSZ8051RNL from Micrel Inc. is a single-chip, AEC-Q100 qualified Ethernet physical layer transceiver designed for automotive applications. It complies with the 10Base-T/100Base-TX IEEE 802.3 standards, providing reliable network connectivity.



This transceiver supports the RMII v1.2 interface, requiring a 50 MHz reference clock. It includes features such as MDC/MDIO management for PHY register configuration, programmable interrupt outputs, and LED indicators for link, activity, and speed status. The device also incorporates on-chip termination resistors for differential pairs and supports HP Auto MDI/MDI-X for automatic cable connection detection and correction.

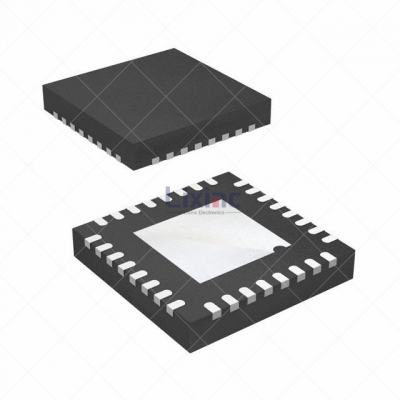

Designed for in-vehicle networking, the KSZ8051RNL operates on a single 3.3V power supply, with options for VDD I/O at 1.8V, 2.5V, or 3.3V. It features a built-in 1.2V regulator for the core. The device is available in a compact 32-pin 5 mm x 5 mm QFN package, suitable for space-constrained automotive electronic systems.

KSZ8051RNL Quick Information

Product Type: Ethernet Transceiver
Series: KSZ8051
Canonical Name: KSZ8051RNL 10Base-T/100Base-TX Automotive Physical Layer Transceiver
Subcategory: Physical Layer Transceiver (PHY)

KSZ8051RNL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

KSZ8051RNL Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

KSZ8051RNL Features

  • AEC-Q100 qualified for automotive.
  • Supports 10Base-T/100Base-TX Ethernet.
  • RMII v1.2 interface support.
  • Single 3.3V power supply.
  • 32-pin 5mm x 5mm QFN package.

KSZ8051RNL Applications

  • Automotive in-vehicle networking.
  • Ethernet communication systems.
  • Embedded system connectivity.
  • Infotainment systems.
  • Advanced driver-assistance systems.

KSZ8051RNL FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the KSZ8051RNL?

The device operates from a single 3.3V power supply with a built-in 1.2V regulator for the core.

What package does the KSZ8051RNL come in?

32-pin QFN with exposed pad (32-QFN-EP) measuring 5x5 mm.

What Ethernet standards does the KSZ8051RNL support?

10Base-T and 100Base-TX.

What interface does the KSZ8051RNL use?

RMII (Reduced Media Independent Interface) v1.2.

What is the mounting type for the KSZ8051RNL?

Surface mount.

Does the KSZ8051RNL have an integrated voltage regulator?

Yes, it includes a built-in 1.2V regulator for the core.

What are the VDD I/O voltage options?

1.8V, 2.5V, or 3.3V.
