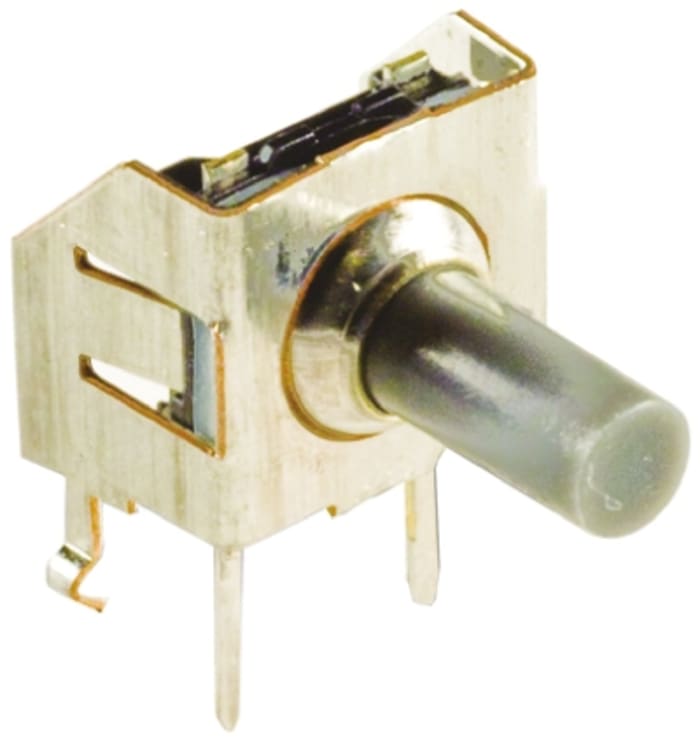

KSL0V211LFT The C&K Components KSL0V211LFT is a tactile switch with a SPST-NO contact configuration and a rating of 0.05A at 32VDC. It features a through-hole, right-angle mounting type and IP60 sealing.
Mfr Part #:

KSL0V211LFT

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components KSL0V211LFT is a tactile switch with a SPST-NO contact configuration and a rating of 0.05A at 32VDC. It features a through-hole, right-angle mounting type and IP60 sealing.
✓ Total Stock: 10 pcs
$ Price Range: $0.75

KSL0V211LFT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KSL0V211LFT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Length, Right Angle
Actuator Orientation
Actuator Type
Circuit
Contact Rating @ Voltage
Contact Resistance
Illumination
Ingress Protection
Insulation Resistance
Lead Style
Mounting Type
Operating Force
Operating Temperature
Outline
Storage Temperature
Switch Function
Termination Style
View Similar Products (0)

KSL0V211LFT Description

Short technical summary and product information.

The C&K Components KSL0V211LFT is a tactile switch designed for various applications. It features a Single Pole Single Throw Normally Open (SPST-NO) contact arrangement and is rated for 0.05A at 32VDC.



This switch is designed for through-hole mounting with a right-angle actuator orientation. It offers an operating force of 130gf and is sealed to an IP60 rating, providing dust-tight protection. The terminals are PC pins, suitable for manual insertion.



Key electrical specifications include a contact resistance of ≤ 100mΩ and an insulation resistance of ≥ 109Ω at 100V. The operating temperature range is -40°C to 90°C.



The switch is compatible with wave soldering processes using lead-free solder profiles. Its dimensions are approximately 8.00mm x 8.00mm with an actuator length of 8.53mm.

KSL0V211LFT Quick Information

Product Type: Tactile Switch
Series: KSL
Canonical Name: C&K Components KSL0V211LFT Tactile Switch

KSL0V211LFT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

KSL0V211LFT Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

KSL0V211LFT Features

  • SPST-NO contact configuration for reliable switching.
  • Rated for 0.05A at 32VDC operation.
  • Through hole, right angle mounting type.
  • IP60 sealing provides dust-tight protection.
  • Operating force of 130gf for tactile feedback.

KSL0V211LFT Applications

  • Suitable for industrial control panels.
  • Used in telecommunication equipment.
  • Ideal for automotive applications.
  • Applicable in consumer electronics.

KSL0V211LFT FAQs

6 frequently asked questions generated from this part’s specifications.
What is the contact configuration of the KSL0V211LFT tactile switch?

The KSL0V211LFT tactile switch has a SPST-NO (Single Pole Single Throw Normally Open) contact configuration.

What is the maximum voltage and current rating for this tactile switch?

The switch is rated for a maximum of 0.05A at 32VDC.

What type of mounting does the KSL0V211LFT support?

This tactile switch supports Through Hole mounting with a Right Angle actuator orientation.

What is the operating temperature range for the KSL0V211LFT?

The operating temperature range for this switch is -40°C to 90°C.

What is the ingress protection rating of this tactile switch?

The KSL0V211LFT has an IP60 rating, meaning it is dust-tight.

What is the operating force required for the KSL0V211LFT?

The operating force for this switch is 130gf.
