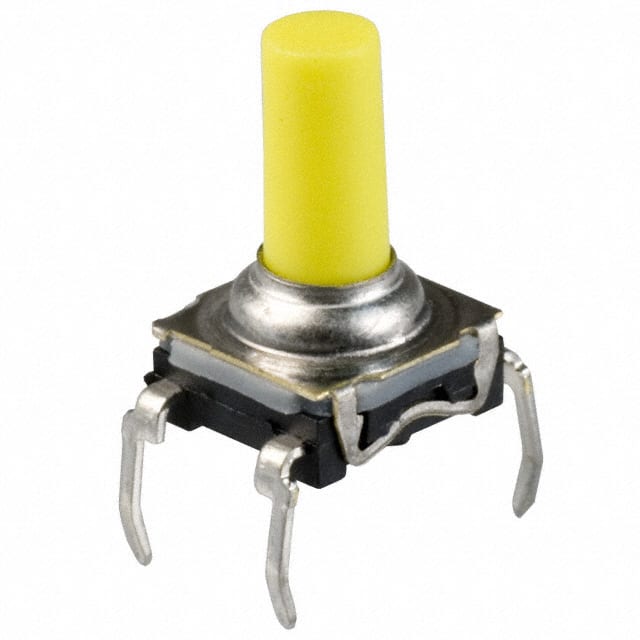

KSL0M512 The C&K Components KSL0M512 is a tactile switch with a SPST-NO contact arrangement. It features a 500gf operating force and IP65 ingress protection.
Mfr Part #:

KSL0M512

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components KSL0M512 is a tactile switch with a SPST-NO contact arrangement. It features a 500gf operating force and IP65 ingress protection.
✓ Total Stock: 5,758 pcs
$ Price Range: $0.75

KSL0M512 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
5,758 pcs
On Request
5758 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KSL0M512 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Height off PCB, Vertical
Actuator Orientation
Actuator Type
Circuit
Contact Rating @ Voltage
Contact Resistance
Illumination
Ingress Protection
Lead Spacing
Mounting Type
Operating Force
Operating Temperature
Outline
Process
Switch Function
Tape & Reel
Termination Style
Type
View Similar Products (0)

KSL0M512 Description

Short technical summary and product information.

The C&K Components KSL0M512 is a high-performance sealed tactile switch designed for various applications. It features a SPST-NO contact arrangement and PC pin termination style, suitable for through-hole mounting.



This switch operates with a force of 500gf and has an actuator height of 9.90mm. It is rated for 0.05A at 32VDC and offers a contact resistance of 50 mΩ. The operating temperature range is -40°C to 90°C, and it boasts an IP65 ingress protection rating, making it dust-tight and water-resistant.



Typical applications include automotive, industrial, and telecommunication networks. The switch is available in bulk packaging of 500 pieces for manual insertion.

KSL0M512 Quick Information

Product Type: Tactile Switch
Series: KSA & KSL MKII Series
Canonical Name: C&K Components KSL0M512 Tactile Switch

KSL0M512 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

KSL0M512 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

KSL0M512 Features

  • SPST-NO tactile switch with PC pin terminals.
  • 500gf operating force for tactile feedback.
  • IP65 sealed for dust and water resistance.
  • Through hole mounting for PCB integration.
  • Rated for 100,000 operations.

KSL0M512 Applications

  • Suitable for automotive applications.
  • Ideal for industrial control systems.
  • Used in telecommunication networks.
  • Applicable in household appliances.

KSL0M512 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the KSL0M512 tactile switch?

The maximum voltage rating is 50 VDC, with a minimum voltage of 20 mV.

What is the operating temperature range for this tactile switch?

The operating temperature range is -40°C to 90°C.

What is the ingress protection rating of the KSL0M512?

The ingress protection rating is IP65, meaning it is dust-tight and water-resistant.

What is the contact arrangement of the KSL0M512?

The contact arrangement is SPST-NO (Single Pole Single Throw - Normally Open).

What is the operating force required for the KSL0M512?

The operating force is 500gf (grams-force).

How is the KSL0M512 switch mounted?

It is designed for through-hole mounting.
