| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Automotive Grade | |
| Circuit | |
| Contact Rating @ Voltage | |
| Contact Resistance | |
| Illumination | |
| Industrial Grade | |
| Ingress Protection | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Process | |
| Storage Temperature | |
| Switch Function | |
| Tape & Reel | |
| Termination Style |

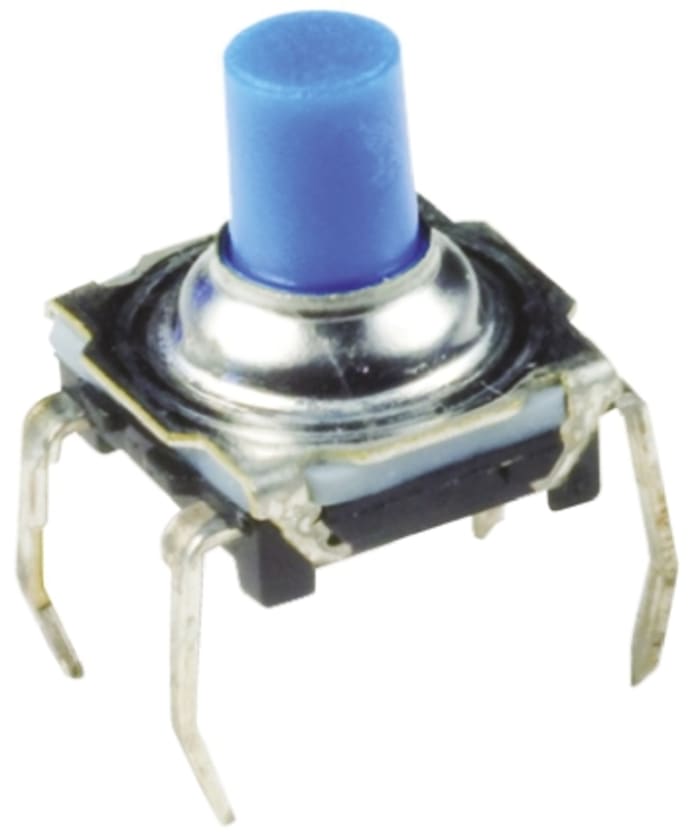

The C&K Components KSL0M411LFT is a tactile switch designed for various applications. It features a Single Pole Single Throw Normally Open (SPST-NO) contact arrangement and is rated for 0.05A at 32VDC.
This switch offers a mechanical life of 100,000 operations and an operating force of 3N (300gf). It is sealed to an IP60 rating, providing dust-tight protection. The mounting type is Through Hole, and the termination style is PC Pin.
Environmental specifications include an operating temperature range of -40°C to 85°C and a storage temperature range of -40°C to 125°C. The switch is RoHS3 compliant and has an MSL of 1.
Typical applications for this series include automotive, industrial, and telecommunication networks. The switch is designed for manual insertion and is wave soldering compatible.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The KSL0M411LFT tactile switch has a SPST-NO (Single Pole Single Throw Normally Open) contact configuration.
The KSL0M411LFT is rated for 0.05A at 32VDC.
The operating force for the KSL0M411LFT switch is 3N (300gf).
The KSL0M411LFT tactile switch has an IP60 rating, meaning it is dust-tight.
The operating temperature range for the KSL0M411LFT is -40°C to 85°C.
The KSL0M411LFT switch is designed for Through Hole mounting.
