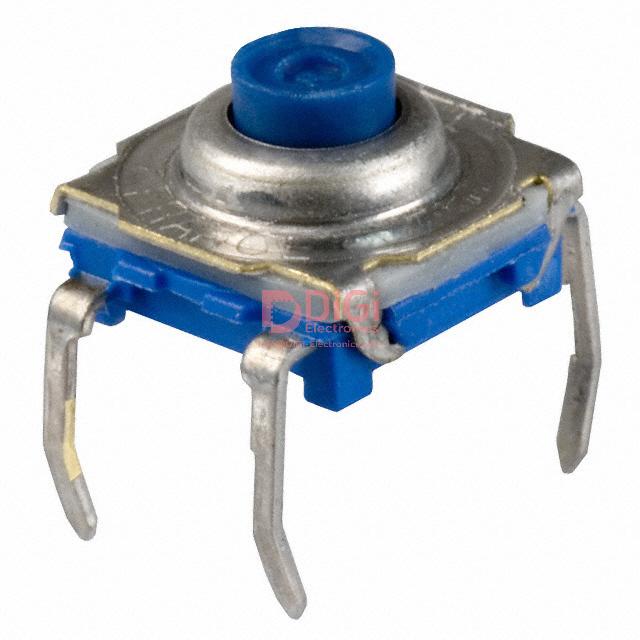

KSL0M411 The C&K KSL0M411 is a tactile switch with a SPST-NO circuit configuration. It features a 0.05A @ 32VDC contact rating and a 300gf operating force.
Mfr Part #:

KSL0M411

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K KSL0M411 is a tactile switch with a SPST-NO circuit configuration. It features a 0.05A @ 32VDC contact rating and a 300gf operating force.
✓ Total Stock: 1,418 pcs
$ Price Range: $0.75

KSL0M411 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1,418 pcs
On Request
1418 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KSL0M411 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Height off PCB, Vertical
Actuator Orientation
Actuator Type
Circuit
Contact Rating @ Voltage
Contact Resistance
Illumination
Ingress Protection
Mounting Type
Operating Force
Operating Temperature
Outline
Storage Temperature
Switch Function
Tape & Reel
Termination Style
View Similar Products (0)

KSL0M411 Description

Short technical summary and product information.

The C&K KSL0M411 is a tactile switch designed for various applications. It features a Single Pole Single Throw Normally Open (SPST-NO) contact arrangement and a standard Off-Mom function.



This switch has a contact rating of 0.05A at 32VDC and a contact resistance of less than 50 mΩ. The operating force is 300gf, with a bounce time of less than 1 ms. The actuator height off the PCB is 9.90mm, and the outline dimensions are 7.40mm x 7.40mm.



Environmental specifications include an operating temperature range of -40°C to 90°C and a storage temperature range of -40°C to 90°C. It has an Ingress Protection rating of IP60, making it dust-tight.



The KSL0M411 is designed for through-hole mounting with PC pin termination style. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited.

KSL0M411 Quick Information

Product Type: Tactile Switch
Series: KSA & KSL Series
Canonical Name: C&K KSL0M411 Tactile Switch
Subcategory: Tactile Switch

KSL0M411 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

KSL0M411 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

KSL0M411 Features

  • SPST-NO circuit configuration.
  • 0.05A @ 32VDC contact rating.
  • 300gf nominal operating force.
  • Through-hole mounting with PC pins.
  • IP60 dust-tight ingress protection.

KSL0M411 Applications

  • Used in electronic control panels
  • Suitable for user interface buttons
  • Ideal for industrial equipment
  • Applied in consumer electronics

KSL0M411 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the contact rating of the KSL0M411 switch?

The contact rating is 0.05A at 32VDC.

What is the operating temperature range for the KSL0M411?

-40°C to 90°C.

What is the ingress protection rating of the KSL0M411?

IP60 - Dust Tight.

What mounting style does the KSL0M411 use?

Through Hole mounting with PC pins.

Is the KSL0M411 RoHS compliant?

Yes, it is RoHS3 compliant.
