| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Contact Resistance | |
| Illumination | |
| Ingress Protection | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Storage Temperature | |
| Switch Function | |
| Tape & Reel | |
| Termination Style |

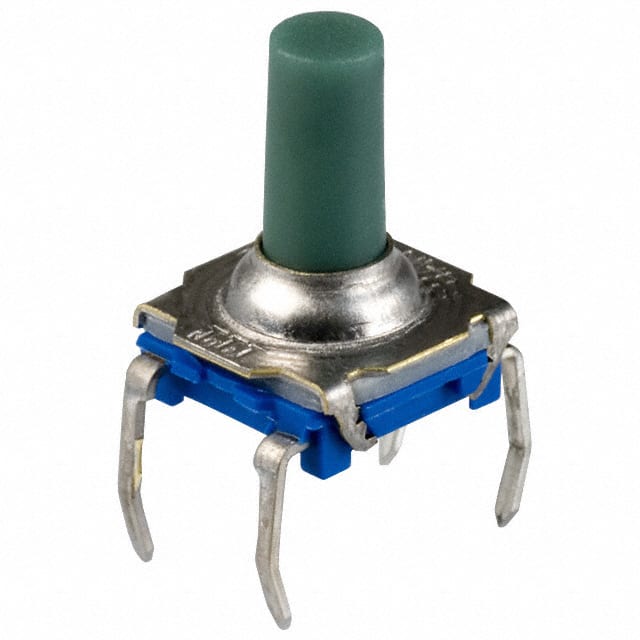

This C&K Components KSL0M311 LFTR is a sealed tactile switch designed for automatic or manual insertion. It features cambered terminals for self-retention and is top or side actuated.
The switch has a SPST-NO contact arrangement and a contact rating of 0.05A at 32VDC. The operating temperature range is -40°C to 85°C, and it offers IP60 dust-tight sealing. The termination style is PC Pin, suitable for through-hole mounting.
Typical applications include automotive, industrial, and telecommunication networks. The switch is RoHS 3 compliant and compatible, with gold contacts rated for 0.2 VA and a longer operating life compared to silver contacts. The operating force is 130gf, and the actuator height off the PCB is 9.90mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
The contact rating is 0.05A at 32VDC.
It supports through-hole mounting.
The ingress protection rating is IP60 - Dust Tight.
It is RoHS 3 Compliant.
