| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,750 pcs
|
4750 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Actuation Force | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Automotive Grade | |
| Circuit | |
| Contact Rating @ Voltage | |
| Contact Resistance | |
| Illumination | |
| Industrial Grade | |
| Ingress Protection | |
| Insulation Resistance | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Storage Temperature | |
| Switch Function | |
| Tape & Reel | |
| Termination Style |

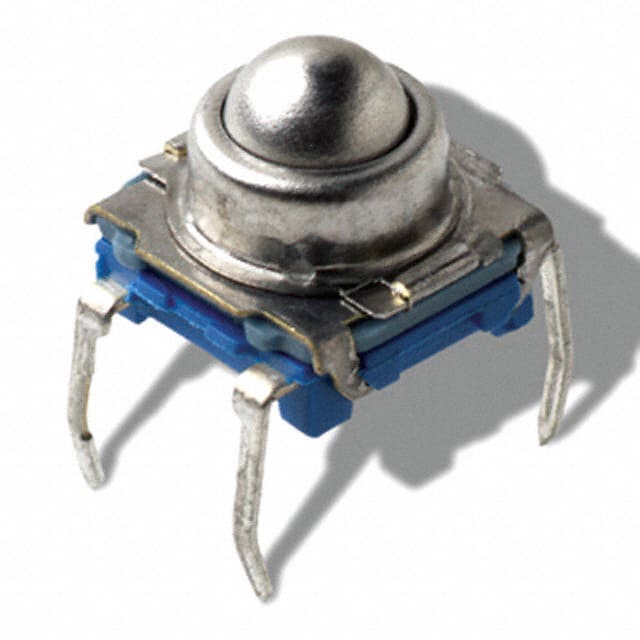

The C&K Components KSJ0M411 80SH LFTR is a tactile switch from the KSJ series, designed with a spherical actuator for compliant side actuation. This momentary action switch features a single pole, single throw, normally open (SPST-NO) contact arrangement.
Key electrical specifications include a contact rating of 0.05A at 32VDC, a minimum operating voltage of 20mV, and a maximum operating current of 50mA. The switch exhibits a contact resistance of less than 100 mΩ and a bounce time of 1 ms or less. It is designed for wave soldering compatibility with lead-free profiles.
Environmentally, the switch is sealed to IP60 standards, offering dust tightness. It operates within a temperature range of -40°C to 85°C and has a storage temperature range of -40°C to 85°C. The switch is packaged in boxes of 250 pieces and is suitable for through-hole mounting.
This tactile switch is designed for mechanisms found in applications such as transportation, cranes, off-road and railway products, factory automation, and security systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 0.05A at 32VDC.
The operating temperature range is -40°C to 85°C.
The ingress protection rating is IP60, meaning it is dust-tight.
It is delivered in boxes of 250 pieces.
It features a spherical actuator.
The contact arrangement is SPST-NO (Single Pole, Single Throw, Normally Open).
