| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,398 pcs
|
4398 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
126 pcs
|
126 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Illumination | |
| Ingress Protection | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Termination Style |

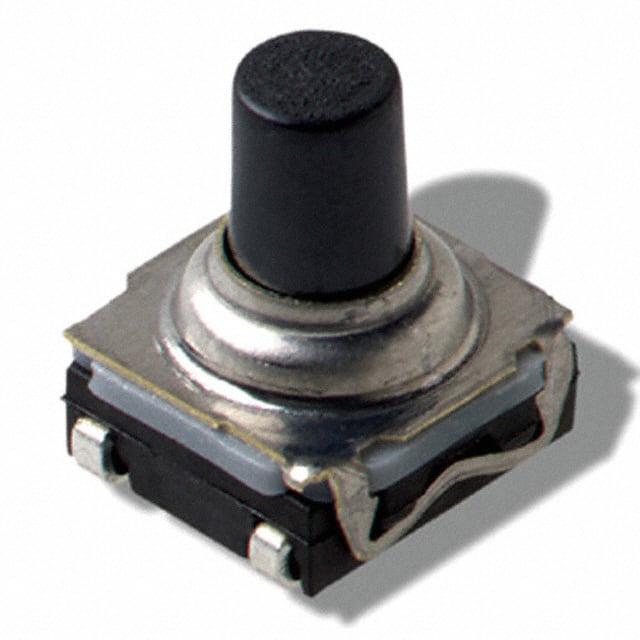

The C&K Components KSC621J LFS is a tactile switch designed for reliable operation in demanding environments. It features a SPST-NO (Single Pole Single Throw Normally Open) circuit configuration, suitable for various switching applications.
This switch is rated for a current of 0.05A at 32VDC, ensuring safe and effective operation within its specified limits. The operating temperature range is from -40°C to 85°C, making it versatile for different thermal conditions. Its robust design includes an IP67 ingress protection rating, providing excellent resistance to dust and water.
The KSC621J LFS is designed for surface mounting, utilizing a J Lead termination style for secure and stable connections. The actuator height off the PCB is 7.70mm, and it features a standard actuator type. The switch dimensions are 6.20mm x 6.20mm, offering a compact footprint for integration into various electronic assemblies.
This tactile switch is non-illuminated and has an operating force of 170gf. It is compliant with RoHS3 standards and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
The contact rating is 0.05A at 32VDC.
The ingress protection rating is IP67, meaning it is dust tight and waterproof.
The KSC621J LFS switch is designed for surface mounting.
