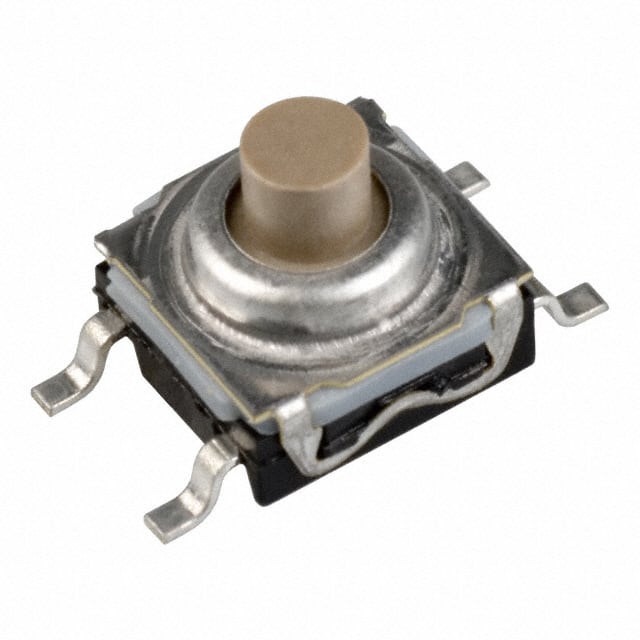

KSC541G The C&K Components KSC541G is a momentary action tactile switch with SPST-NO contact arrangement and gull wing termination for SMT mounting. It features a 300gf operating force and a sealed design.
Mfr Part #:

KSC541G

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components KSC541G is a momentary action tactile switch with SPST-NO contact arrangement and gull wing termination for SMT mounting. It features a 300gf operating force and a sealed design.
✓ Total Stock: 500 pcs
$ Price Range: $0.75

KSC541G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
500 pcs
On Request
500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KSC541G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Actuator Height off PCB, Vertical
Actuator Orientation
Actuator Type
Automotive Grade
Circuit
Color
Contact Form
Contact Rating @ Voltage
Contact Resistance
Current Rating
Features
Function
Height
Illumination
Industrial Grade
Ingress Protection
Insulation Resistance
Lead Style
Length
Medical Grade
Military Grade
Mounting Style
Mounting Type
Operating Force
Operating Temperature
Outline
Power Rating
Storage Temperature
Switch Function
Termination Style
Width
View Similar Products (0)

KSC541G Description

Short technical summary and product information.

The C&K Components KSC541G is a tactile switch designed for surface mount applications. It features a momentary action with a Single Pole Single Throw Normally Open (SPST-NO) contact arrangement. The switch is sealed, offering protection against dust and moisture.



Key mechanical specifications include an operating force of 300gf (grams-force) and a travel to make of 0.25mm axially. The dimensions of the switch are 6.20mm x 6.20mm with a height of 5.60mm. It is designed for compatibility with automatic insertion machines and is washable.



Electrically, the KSC541G is rated for a maximum current of 50mA and a maximum voltage of 32VDC, with a maximum power rating of 1 VA. The contact resistance is less than 100 mΩ, and the bounce time is less than 1 ms. The switch has a life expectancy of 100,000 cycles.



Typical applications include automotive, computers, and instrumentation. The switch is supplied on tape and reels, with 1,000 pieces per reel.

KSC541G Quick Information

Product Type: Tactile Switch
Series: KSC5 Series
Canonical Name: C&K Components KSC541G Tactile Switch
Subcategory: Tactile Switch

KSC541G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

KSC541G Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

KSC541G Features

  • Momentary action SPST-NO tactile switch.
  • 300gf operating force for tactile feedback.
  • Gull wing termination for SMT mounting.
  • Sealed design for environmental protection.
  • Compact dimensions: 6.20mm x 6.20mm x 5.60mm.

KSC541G Applications

  • Ideal for automotive control panels.
  • Suitable for computer peripheral interfaces.
  • Used in electronic instrumentation devices.
  • Provides reliable user input for devices.

KSC541G FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating force of the KSC541G tactile switch?

The operating force for the KSC541G tactile switch is 300gf.

What type of termination does the KSC541G switch use?

The KSC541G switch uses gull wing termination.

What is the maximum voltage rating for the KSC541G tactile switch?

The maximum voltage rating for the KSC541G tactile switch is 32 VDC.

What is the operating temperature range for the KSC541G?

The operating temperature range for the KSC541G is -40°C to 85°C.

How is the KSC541G tactile switch packaged?

The KSC541G tactile switch is delivered on continuous tape and reels of 1,000 pieces.
