| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,000 pcs
|
12000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Material | |
| Contact Rating @ Voltage | |
| Contact Resistance | |
| Function | |
| Illumination | |
| Ingress Protection | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Storage Temperature | |
| Switch Function | |
| Tape & Reel | |
| Termination Style |

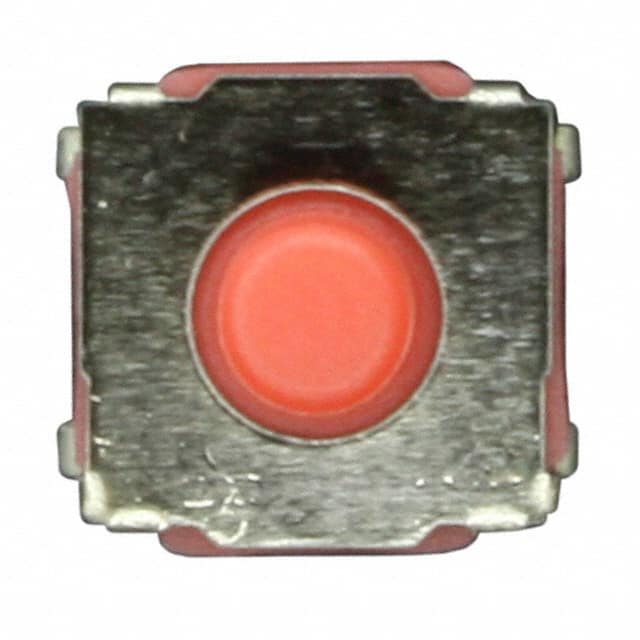

The C&K Components KSC4D1J 50SH LFS is a sealed tactile switch designed for Surface Mount Technology (SMT) applications. It offers a momentary action with a Single Pole Single Throw Normally Open (SPST-NO) contact arrangement.
Key electrical specifications include a contact rating of 0.05A at 32VDC. The switch requires an operating force of 200gf and has an actuator height of 5.2mm off the PCB. Its dimensions are 6.20mm x 6.20mm.
Designed for durability, this switch boasts an IP67 rating, providing protection against dust and water ingress. It operates within a temperature range of -40°C to 85°C and is compatible with infrared reflow soldering processes.
Typical applications include automotive systems, cellular phones, industrial electronics, and computer infrastructure.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
This switch has an IP67 rating, meaning it is dust-tight and waterproof.
The contact rating is 0.05A at 32VDC.
The operating force is 200gf.
This switch uses J Lead and Gullwing termination styles for SMT.
It is supplied on reels of 1,000 pieces and is tape and reel compatible.
