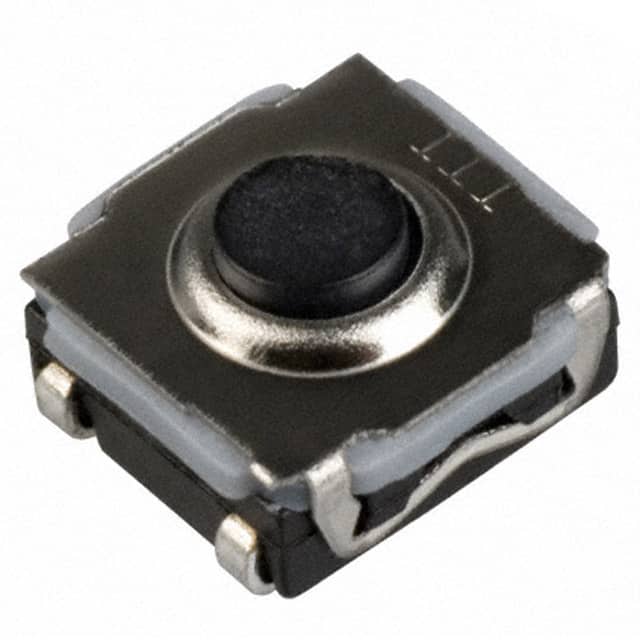

KSC341JLFS The C&K Components KSC341JLFS is a tactile switch with SPST-NO contact arrangement. It features a surface mount design and IP67 sealing.
Mfr Part #:

KSC341JLFS

Available from 4 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components KSC341JLFS is a tactile switch with SPST-NO contact arrangement. It features a surface mount design and IP67 sealing.
✓ Total Stock: 16,337 pcs
$ Price Range: $0.75

KSC341JLFS Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KSC341JLFS Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Height off PCB, Vertical
Actuator Orientation
Actuator Type
Circuit
Contact Rating @ Voltage
Function
Illumination
Ingress Protection
Lead Style
Mounting Type
Operating Force
Operating Temperature
Outline
Switch Function
Tape & Reel
Termination Style
View Similar Products (0)

KSC341JLFS Description

Short technical summary and product information.

The C&K Components KSC341JLFS is a tactile switch designed for various applications. It operates with a momentary action and features a SPST-NO contact arrangement. The switch is rated for 0.05A at 32VDC and has an operating force of 300gf.



Designed for surface mounting, the KSC341JLFS has a compact outline of 6.20mm x 6.20mm and an actuator height of 3.50mm. It is sealed to IP67 standards, providing dust-tight and waterproof protection. The operating temperature range is -40°C to 85°C, and it boasts a mechanical life of 300,000 cycles.



This switch is suitable for industrial electronics, consumer products, and transportation applications due to its robust construction and environmental sealing.

KSC341JLFS Quick Information

Product Type: Tactile Switch
Series: KSC3
Canonical Name: C&K Components KSC341JLFS Tactile Switch
Subcategory: Tactile Switch

KSC341JLFS Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

KSC341JLFS Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

KSC341JLFS Features

  • Momentary action, SPST-NO circuit.
  • Rated for 0.05A at 32VDC.
  • IP67 sealed for dust and water protection.
  • Surface mount with 3.50mm actuator height.
  • 300,000 cycle mechanical life.

KSC341JLFS Applications

  • Suitable for industrial electronics.
  • Ideal for consumer products.
  • Used in transportation applications.
  • Designed for small product applications.

KSC341JLFS FAQs

6 frequently asked questions generated from this part’s specifications.
What is the contact arrangement for the KSC341JLFS tactile switch?

The KSC341JLFS has a 1 make contact = SPST, N.O. contact arrangement.

What is the operating temperature range of the KSC341JLFS switch?

The operating temperature range is -40°C to 85°C.

What is the ingress protection rating of the KSC341JLFS?

The KSC341JLFS has an IP67 rating, meaning it is dust-tight and waterproof.

What is the mechanical life of the KSC341JLFS tactile switch?

The KSC341JLFS has a mechanical life of 300,000 cycles.

What is the contact rating for the KSC341JLFS?

The contact rating is 0.05A at 32VDC.

What is the actuator height off the PCB for the KSC341JLFS?

The actuator height off the PCB is 3.50mm.
