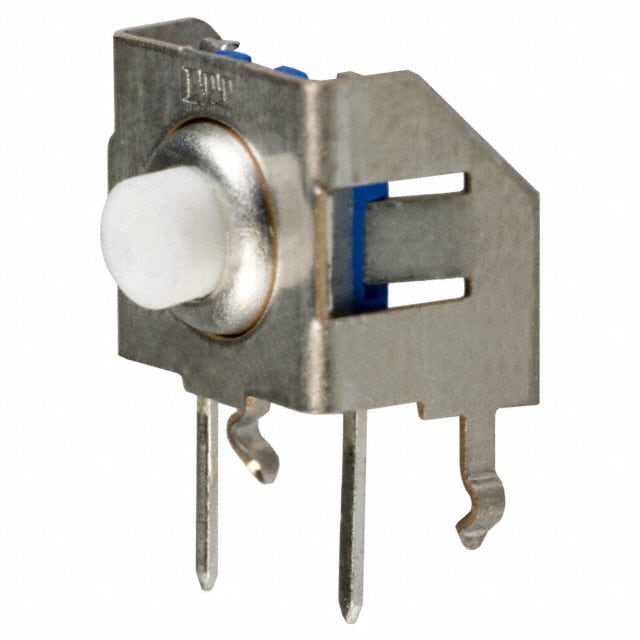

KSA0V211 LFTR The C&K Components KSA0V211 LFTR is a tactile switch with an SPST-NO circuit and a contact rating of 0.05A @ 32VDC. It features side actuation and IP60 sealing.
Mfr Part #:

KSA0V211 LFTR

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components KSA0V211 LFTR is a tactile switch with an SPST-NO circuit and a contact rating of 0.05A @ 32VDC. It features side actuation and IP60 sealing.
✓ Total Stock: 7,176 pcs
$ Price Range: $0.75

KSA0V211 LFTR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
7,176 pcs
On Request
7176 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

KSA0V211 LFTR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Length, Right Angle
Actuator Orientation
Actuator Type
Circuit
Contact Rating @ Voltage
Contact Resistance
Illumination
Ingress Protection
Insulation Resistance
Mounting Type
Operating Force
Operating Temperature
Outline
Storage Temperature
Switch Function
Tape & Reel
Termination Style
View Similar Products (0)

KSA0V211 LFTR Description

Short technical summary and product information.

The C&K Components KSA0V211 LFTR is a tactile switch designed for various applications. It features a Single Pole Single Throw Normally Open (SPST-NO) contact arrangement and a contact rating of 0.05A at 32VDC.



This switch is side actuated and has an operating force of 130gf. It is sealed to IP60 standards, providing dust-tight protection. The termination style is PC Pin, and it is designed for through-hole, right-angle mounting.



Key electrical specifications include a maximum power rating of 1 VA for silver contacts and 0.2 VA for gold contacts, with a bounce time of less than 1 ms. The operating temperature range is -40°C to 85°C for silver contacts and -40°C to 125°C for gold contacts.



Typical applications for this series include automotive, industrial, and telecommunication networks. The switch is compatible with wave soldering and lead-free soldering profiles.

KSA0V211 LFTR Quick Information

Product Type: Tactile Switch
Series: KSA & KSL Series
Canonical Name: C&K Components KSA0V211 LFTR Tactile Switch

KSA0V211 LFTR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

KSA0V211 LFTR Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

KSA0V211 LFTR Features

  • SPST-NO contact arrangement
  • 0.05A @ 32VDC contact rating
  • IP60 dust-tight sealing
  • Through hole, right angle mounting
  • Side actuated

KSA0V211 LFTR Applications

  • Used in consumer electronic devices
  • Suitable for control panels
  • Applied in industrial equipment
  • Ideal for user interface buttons

KSA0V211 LFTR FAQs

5 frequently asked questions generated from this part’s specifications.
What is the contact rating for the C&K Components KSA0V211 LFTR?

The contact rating is 0.05A @ 32VDC for silver contacts.

What is the operating temperature range for this tactile switch?

The operating temperature range is -40°C to 85°C for silver contacts and -40°C to 125°C for gold contacts.

What is the ingress protection rating of the KSA0V211 LFTR?

The ingress protection rating is IP60, meaning it is dust-tight.

How is the KSA0V211 LFTR mounted?

It is mounted using a through-hole, right-angle method.

What is the circuit configuration of this tactile switch?

The circuit configuration is SPST-NO (Single Pole Single Throw Normally Open).
