| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage |

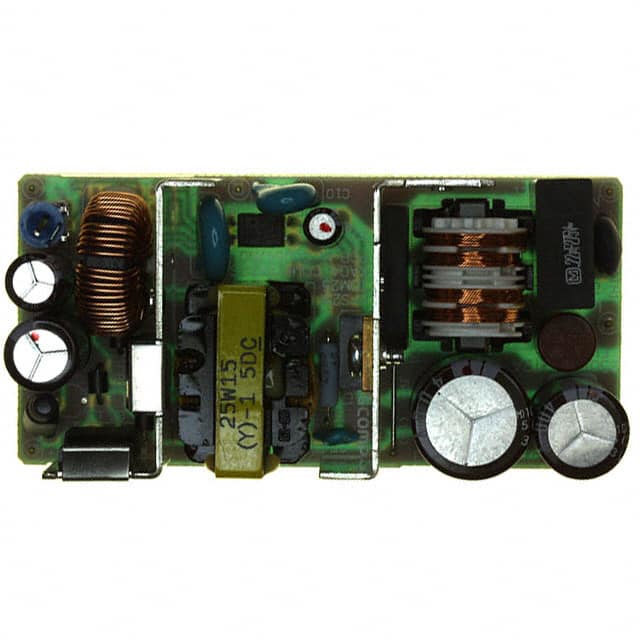

The Kaga Electronics USA KRS25F-15 is an open-frame AC/DC converter designed for ITE (Commercial) applications. It provides a single 15VDC output at 1.7A, with a total power rating of 25W. The converter accepts a wide input voltage range of 85 to 264 VAC and features adjustable output voltage with ±10% range and ±5% accuracy.
Key electrical specifications include an efficiency of 80% at full load, a ripple and noise level of 80mVp-p, and a temperature coefficient of 0.02%/°C. It offers over-current protection that automatically recovers and thermal shutdown protection. Isolation is rated at 3000VAC between primary and secondary circuits.
This AC/DC converter is designed for through-hole mounting and comes in a 5-DIP module package. It operates within an ambient temperature range of 0°C to 70°C, with derating applied at higher temperatures. The unit meets various safety and EMI standards, including UL60950, CSA C22.2, CE, CB, FCC Part 15 Class B, and EN55022 Class B.
The output voltage is 15 VDC and the output current is 1.7 A.
The input voltage range is 85 to 264 VAC at 47 to 63 Hz.
The power rating is 25 W.
The typical efficiency is 80% at full load.
The operating temperature range is 0°C to 70°C with derating.
The package is a 5-DIP module with through-hole mounting.
It meets UL60950, CSA C22.2 No.60950 (cUL), CE (EN60950 LVD), and CB (IEC60950).
